High Power Electric 12V Planetary Gear/Reduction Micro Mini Electronic Outboard Boat DC Motor for Medical Equipment/Car Conversion Kit

Product Description

Product Description

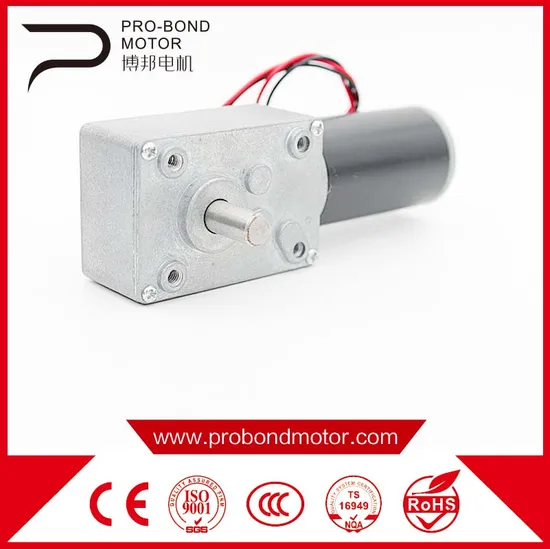

24ZYJ DC Worm Gear Motor
Basic Info
Item			Data
Tem Rise			40K
Working Tem			(-20ºC~+80ºC)
Insulation Resistance			100MΩ min 500VDC
Surge Test			500VAC for 1min
Insulation Class			E
Weight			120g

The specification of DC Electrical Worm Gear Reducer Motor with high torque

Specification
PN	Rated Voltage	Initial Speed	Ratio	Power	Noload Speed	Noload Current	Rated Speed	Rated Current	Rated Torque	Stall Torque	Stall Current
	V DC	rpm	1:xxx	W	rpm	mA	rpm	mA	Kg.cm	Kg.cm	mA
24ZYJ4632-65A	12	6500	100	3	65	80	50	200	0.75	2	1000
24ZYJ4632-28A	12	5000	180	3	28	80	23	200	1.6	3	1000
24ZYJ4632-38A	12	9500	250	3	38	100	33	250	2.6	5	1500

The drawing of DC Electrical Worm Gear Reducer Motor with high torque
Below are only some typical models, for more specification or a customed motor, pls contact us.
About our company
Probond motors designs brush, brushless, stepper, hysteresis and linear motors to meet customers requirements. Our motors use standard and special components with customer selected torque/speed requirements that can be modified to your applications. The AC/DC gear motors are based upon to distinct magetic circuits that optimize motor design for high speed low torque and low speed high torque. These motors give you lower rotational losses, excellent thermal transfer, interchangeable end caps, easily sealed. Options include connectors, encoders, shaft modifications, dimensional changes, etc. Probond motor owns professional sales team and engineer team with more than 10 years experience in motor industry, based on China mainland handling overseas business for years, we know your needs better than others. Probond Sonicare Toothbrush Motor and Thermostatic Valve Hysteresis Motor are our hot products on sell in 2017 with highly quality level and competitive price. Please kindly contact us to get a catalogue.
Terms of Trade

Terms of price	FOB,CIF,CFR,EXW,DDP,etc.
Terms of payment	100% T/T in advance for samples
	Bulk quantity payment way can be negotited
Warranty	12 months limited warranty once the items are delivered to the buyer.
Lead time	Usually within 2 weeks for trial orders, within 3 weeks for bulk orders.
Package	Carton o plywood pallet.
Place of loading	Shanghai, Ningbo, etc.
Shipment carrier	Items are usually shipped via Fedex,DHL, TNT,UPS,EMS for trial orders and via vessel for bulk orders.
Delivery time	Usually within 5 working days by Express 15-30 working days by vessel

Our promise to our Customers:
1. Answer customer's inquiry within 2 working days.
2. Reply to our customer questions & Concerns within 3 working days.
3. Acknowledge Customer purchase orders within 24 hours.

---
