Product Description
Product Description

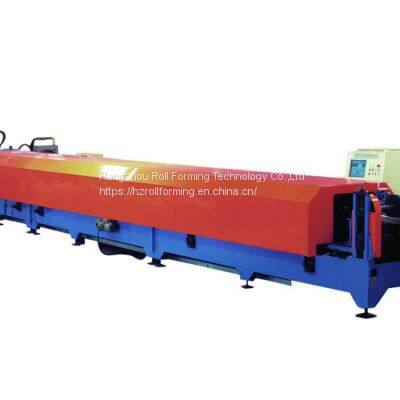

The fully automatic C/Z steel integrated machine is also called the C/Z interchange molding machine, and C and Z interchange purlin machine. The fully automatic CZ purlin machine provides users with highly automatic roll forming machine that can realize the interchange production of C/Z two models and various specifications purlins in a short time by PLC computer control. The production process of the fully automatic C and Z interchange purlins is completely automatic, and there is no need to change the forming rollers when changing the specifications. The invention of the C&Z purlin forming machine has changed the history of processing C and Z different purlins by using two different C and Z equipment, saving users lots of investment cost and space.
Features and Advantages of Fully Automatic C&Z Purlin Roll Forming Machine
·
Fully automatic multi-size adjusting on PLC screen.
·
Fully automatic C & Z changeover mode on PLC screen.
·
High Forming speed: 30m/min
·
Certified with Multi-Patents; CE Certified, EUROPEAN quality standard
·
Most of the hot & popular profiles models, we have ready machines in stock for prompt delivery.
Suitable Coil Sheet Material for Fully Automatic C&Z Purlin Forming Machine
Suitable material: Cold/hot Rolled Steel, Galvanized Steel
Thickness: 1.6-3.2(mm)
Yield Strength: 230-300 (MPa)
Width: as profile requests
Production Line Components and Parameters of FullyAutomatic C&Z Purlin Forming Machine
FullyAutomatic C&Z Purlin Forming Machine
1. Decoiler-leveler integrated unit
| 3t/5t automatic
|
2. Servo Feeding unit
|
|
3. hole punching unit
|
|
4. over ground accumulator(optional)
|
|
5. Pre-cutting to length
|
|
6. Roll forming system
| 30m/min
|
7. Safety cage
| closed type
|
8. Output System
| Automatic Stacker
|
9. Hydraulic system
| Power supply for pre-cutting and hole punching system
|
10. Electric control system
| industrial computer communicates with PLC through RS485 connector. The system use WINDOWS2000 with soft ware IFIX
|
Working Flow of Fully Automatic C&Z Purlin Roll Forming Machine
Which is Stronger: Z purlin or C purlin?
From the viewpoint of loading capacity, Z purlin is normally seen as much stronger than C purlins, as the Z steel purlins have better integrity and can be overlapped continuously. Thus, when it comes to constructing metal buildings with continuous spans, it is better to use Z purlins; whereas, regarding the building of supporting walls, C purlins will be much more favored as they can be installed and calculated more easily. As a professional forming machine manufacturer, Hangzhou Roll Forming Technology can provide you with high-quality fully automatic CZ roll forming machine that can produce both purlin styles to better meet your needs.
Specification of C&Z Purlin Forming Machine
Machine Condition
| Fully New, A-Grade quality
|
Panel Shape
| As profile drawing and customer’s requirements
|
Operator
| needed 1 person
|
Power Supply
| 220V/380V/415V/460V, 50/60Hz, 3P (as requests)
|
Equipment Weight
| About25T
|
Dimension
| (L*W*H) about 45*3*2m
|
LOADING SIZE
| Normally need 2x 40' container.
|
Equipment Color
| Normally Blue/White, or as requests;
|
Place of Origin
| Zhejiang, China (Mainland)
|
Packing
| Standard and careful export packing
|
>>
