Automatic Solid Wood Finger Joint Machine Production Line for Woodworking and Door Frame

US$63,000.00-68,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

MHZ1560

Warranty

1 Year

Voltage

3 Phase 380V

Air Pressure

0.6-0.8MPa

Dimension

24610*5220*1440mm

Total Power

48 Kw

Working Thickness

20-80 mm

Working Width

30-150 mm

Max Productivity

6-7 PCS, 6m Length/Each

Strip Length

150-850 mm

Max Press Force

7800kg

Application

Furniture Plant Solid Wood Board Wood Processing

Motor

Servo Motor

Certificate

CE ISO

Transport Package

Wooded Case Package

Specification

3100*1450*1550mm

Trademark

Wardwin

Origin

China

HS Code

84659900

Production Capacity

100/Month

Product Description

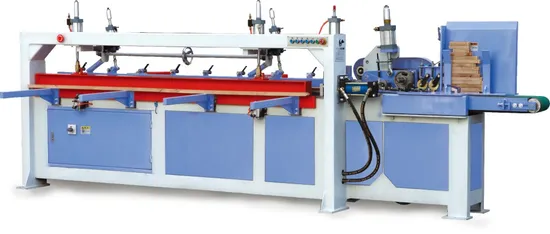

MHZ1560 Automatic Finger Joint Line
This machine with two shaper machines and one pressing machine, connect with different conveyors thus no save labor, this line total power 48.4kw, space 24m, need about 2 operators, can make 6-7 pcs 6m wood per minute.

This machine can make both horizontal and vertical finger joint, just adjust in the machine.

Product Function

Strap conveyor--Finger joint shaper--Transition strap conveyor--Finger joint shaper(with gluing)--Roller conveyor--Upender--Chain conveyor--Finger joint assembler

Product Specification

Model	MHZ1560
Operator	2 persons
Productivity	6-7pc 6m/min
Working thickness	20-80mm
Working width	30-150mm
Feeding length	150-850mm
Finished assembly length	2000-6000mm
Shaper working table	850*600mm
Shaper spindle diameter	70mm
Shaper cutter outside diameter	160mm
Shaper spindle speed	5000rpm
Main saw spindle speed	2840rpm
Max. Hydraulic pressing force	7800kg
Shaper machine power	17.87kw*2
Conveyor power	0.75+2.25+3kw=6kw
Pressing machine power	6.7kw
Total motor power	48.4kw
Machine voltage	380v 50hz 3phase
Working air pressure	8Bar
Pressing method	Cutting first then press
Finished wood length tolerance	1-2mm
Machine space	2461052201400mm
Weight	10000kg
