Manual Universal Milling Machine (table size 1700X400mm)

Product Description

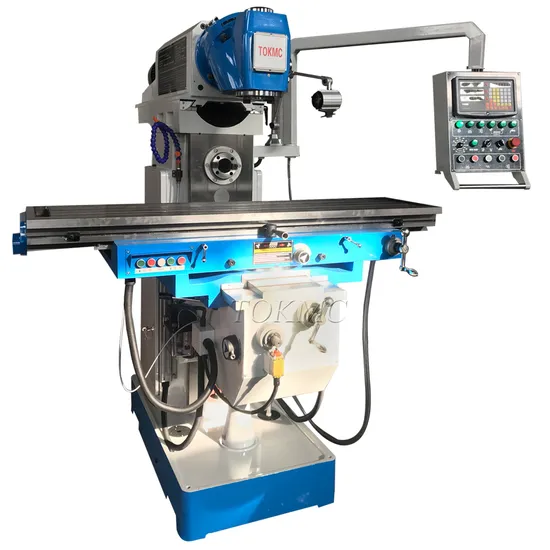

LUNAN milling machine
knee type vertical horizontal mill machine TUM1668BVH
FEATURES
Logical, clearly arranged gearshift for speed change
Hardened and polished guide ways guarantees top accuracy
Setting of the required feed speed by potentiometer on the control panel
Finely graduated feeds in all axis, driven by servo motor
Universal mill head system 'Huron' adjusts to various angles
Complete with rapid feed in x-, y- and z-axis to reduce downtime
Optimal adjustments of spindle speed and feed allow for economic machining of various materials
Variable speed transmission on X,Y ,Z axes

Specifications	Unit	TUM1668BVH
Table size	mm	1700×400
Table travel (X/Y/Z)	mm	1250/450/650
Table feed speed X axis	mm/min	25~800
Table feed speed Y axis	mm/min	25~800
Table feed speed Z axis	mm/min	8~267
Spindle taper		7:24 IS050 (H) 7:24 IS050 (V)
Arm travel	mm	700
Distance from vertical spindle to table	mm	200-850
Distance from horizontal spindle to table	mm	0-500
Distance from spindle to arm	mm	200
Spindle speed range	r.p.m	50-1520 (V) 60-1850 (H)
Spindle speed steps	steps	12
T-slots(NO./width/pitch)	mm	3/18/100
Main motor power	Kw	5.5 (H) 5.5 (V)
AC servo feed motor torque	N.m	12
Overall size	mm	2245x2100x2000
Net weight	kg	3300

Standard accessories:
Mill chuck set
Draw bar
Mill arbors
Worktable swivel ±50 degree
Reduction sleeve
Coolant device
Coolant tray
Automatic central lubrication
Foundation bolts
Tools
Optional accessories:
3-axis digital readout
Machine vice
Spindle protection
Horizontal & vertical rotary table
Clamping kit set 58-pcs
Universal dividing head
LED machine light
Arbor support for vertical milling head

---
