Chinese Factory High Quality Stainless Steel Galvanized Steel Sheet Flying Shear CNC Cut to Length Machine and Various Non-Standard Cutting Lines

Product Description

Chinese Factory High Quality Stainless Steel Galvanized Steel Sheet Flying Shear CNC Cut to Length Machine and Various Non-Standard Cutting Lines
FEATRURES
High degree of automation, high shearing accuracy and fast running speed
Specification: Main Technical datas for high speed rotary shear cut to lenght line:

u1.	application	Stainless steel,Aluminium,Hot rolled,Cold Rolled
2.	Thickness of coiled plate	0.3-2mm
3.	Width of coiled plate	1300mm
4.	Line speed	0-50m/min
5.	Loading capacity	15T
6.	Coil I.D	510/610mm
7.	Coil O.D	≤2000mm
8.	Diameter of leveling roller	65
10.	Number of leveling rollers	19
11.	Length accuracy	±0.5mm/m
12.	Levelling accuracy	±1.2mm/ m2
13.	Direction of feed material	from Right to Left or Left to Right (customized)
14.	Power Supply	customized

LIST OF EQUIPMENTS UNDER SCOPE OF SUPPLY for high speed decoiler straightening machine decoiler and shearing machine steel coil cutting machine:
1. Hydraulic Coil car
2. Hydraulic Decoiler
3. Hydraulic entry guide
4. Four/Six hi leveler
5. Loop bridge
6. Side guide roller
7. NC servo feeder leveler
8. Measure system
9. Shearing Machine
10. Conveyor table
11. Pneumatic discharge device
12. Hydraulic lifting table
13. Unloading stacking car
14. Hydraulic Systems
15. Pneumatic Systems
16. Electrical System PLC Control
ITEMS
export port:shanghai port
guarantee:shanghai qiangda is reponsible for the installation, adjustment and technical instructions. but the buyer should bear all related fees, such as visa, transportation, accommodation fee and a daily salary of USD100/person.
warranty period:one year.
PARAMETERS

Qiangda60 Series Parameter							Qiangda100 Series Parameter
Model	Sheet Thickness(mm)	Coil Weight(T)	Coil Width(mm)	Line Speed	Shear accuracy	Leveling accuracy	Model	Sheet Thickness(mm)	Coil Weight(T)	Coil Width(mm)	Line Speed	Shear accuracy	Leveling accuracy
60-2x650	0.2-2.0	3,5	150-650	10-60	±0.2	1.2	100-2x650	0.2-2.0	3,5	150-650	10-100	±0.15	1.0
60-2x850	0.2-2.0	5,10	150-850	10-60	±0.2	1.2	100-2x850	0.2-2.0	5,10	150-850	10-100	±0.15	1.0
60-2x1050	0.2-2.0	10,15	300-1050	10-60	±0.2	1.2	100-2x1050	0.2-2.0	10,15	300-1050	10-100	±0.15	1.0
60-2x1300	0.3-2.0	10,15	300-1300	10-60	±0.2	1.2	100-2x1300	0.3-2.0	10,15	300-1300	10-100	±0.15	1.0
60-2x1600	0.3-2.0	15,20	300-1600	10-60	±0.2	1.2	100-2x1600	0.3-2.0	15,20	300-1600	10-100	±0.15	1.0
60-3x650	0.2-3.0	3,5	150-650	10-60	±0.2	1.2	100-3x650	0.2-3.0	3,5	150-650	10-100	±0.15	1.0
60-3x850	0.2-3.0	5,10	150-850	10-60	±0.2	1.2	100-3x850	0.2-3.0	5,10	150-850	10-100	±0.15	1.0
60-3x1050	0.2-3.0	10,15	300-1050	10-60	±0.2	1.2	100-3x1050	0.2-3.0	10,15	300-1050	10-100	±0.15	1.0
60-3x1300	0.3-3.0	10,15	300-1300	10-60	±0.2	1.2	100-3x1300	0.3-3.0	10,15	300-1300	10-100	±0.15	1.0
60-3x1600	0.3-3.0	15,20	300-1600	10-60	±0.2	1.2	100-3x1600	0.3-3.0	15,20	300-1600	10-100	±0.15	1.0

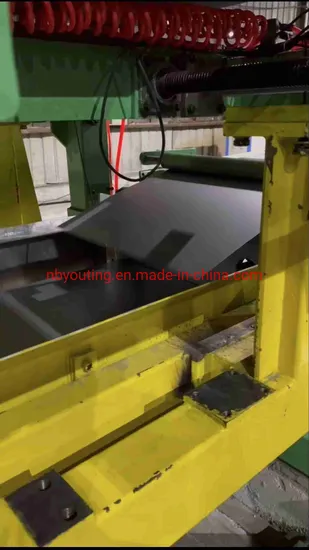

PICTURES
WORK-FLOW CHART
Welcome to choose Qiangda and Youting. We will tailor a set of programs to your satisfaction according to your needs. Welcome to inquire at any time.
Installation on site for customers

ABOUT US
PACKING&TRANSPORTING
FAQ
1.What is your advantages?
More than 20 years experience in manufacture. We have professional engineers to provide technical support and rich experience in solving emergency. High degree of automation, high shearing accuracy and fast running speed.
2. Do you have after sales support?
We provide thoughtful after-sales service, and also arrange complete management cases for customers.
Training: Customers can get great training related to our products and technology from our factory Qiangda&Yuao.
On-site Service: Qiangda&Yuao has a complete technical service system.
We make sure that "the service team will go where our customer needs." May you have questions, please contact us or leave a message online.
Technical Support: We offer the technical support if needed. Our engineers will help you with installation and operation.
3. What information you need to prepare the quotation:
1. Coil thickness rang(min-max)
2. Plate width (min-max)
3. What kind of your material
4. Weight of your coils (max)
5. Speed
6. How many tons you need per day or per month

---
