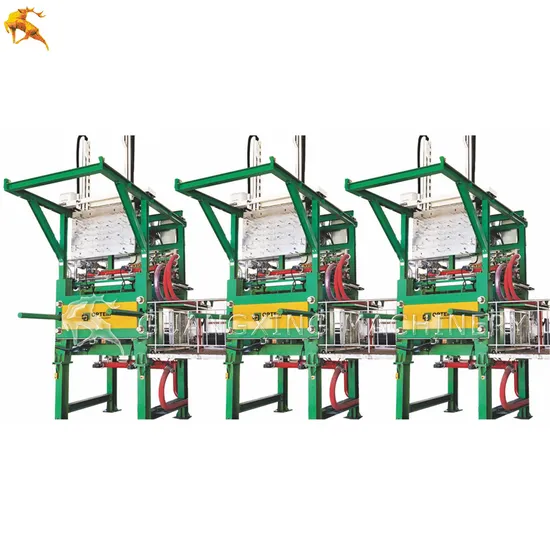

Automatic EPS Shape Moulding Machine EPS Machine EPS Shaping Machine

Product Description

1.Control System :
The machine is integrated with international advanced electronic original components with PLC Programmable Logic Controller (Germany,Siemens) and a Chinese touch screen displayer. With many self-protection and alarm systems,it is easily operated to to carry out automatic production from feeding, temperature control, ration, pressurizing,etc.
Work Modes:
It works in two modes: normal feeding and pressure feeding of material, and the two modes can be switched as the structure and form of the mold. It is optional for full automatic and semi-automatic method.
3.Steam System
The machine is with equilibrium valve to ensure the steam and temperature stable , and less steam consumption.
4.Power System:
The machine is driven by hydraulic pressure with a fast/slow differential system to ensure the precise time for mold opening and closing in an economized time and stable operation.
Vacuum System (optional)
The machine is with excellent vacuum system to accelerate product shaping speed, short the cooling time & reduce product water content.
6.Other Advantage:
The machine can automatic and efficient carry out heating, cooling, feeding and ingot stripping process to adapt to different EPS products. Various of heating methods can be optionally used as per the product form so as to ensure the product quality. A vacuum and negative pressure system can ensure a low water content, rapid shaping and short drying period (or without drying).
Product Parameters

EPS Shape Molding Machine is mainly used to produce EPS foam packaging box , ICF block, block concrete insert, floor hollow block, hourdis,lost foam casting, decorative cornice, ceiling board, column, helmet, etc.

Item	Unit\Model	PSZ120	PSZ140	PSZ175	PSZ2000
Mould Size	mm	1200x1000	1400x1200	1750x1450	2000x1600
Finished Products Size	mm	1080x900x330	1320x1090x330	1600x1290x330	1750x1400x330
Mould Opening Distance	mm	1400	1620	1620	1620
Steam Consumption	kg/cycle	7	9	10	11
Steam Pressure	Mpa	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Cooling Air Consumption	kg/cycle	45-138	50-150	60-190	65-200
Compressed Air Consumption	m³/ cycle	1.5	1.8	2	2.2
Compressed Air Pressure	mpa	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Vacuum Pump Air Suction Amount	m³/h	165	230	280	280
Production Cycle	sec	60-150	60-150	60-150	60-150
Installed Power	kw	9.1	12.1	14.1	14.1
External Dimension	mm	4600x1850x3300	5000x2050x3700	5000x2400x4000	5000x2650x4150
Installed Weight	kg	3200	4300	4850	5300

Product Description

Company Profile

Hebei Guangxing Machinery Technology Co., Ltd. was founded in 1987. It is a professional manufacturer of exterior wall insulation equipment and composite panel equipment. It is the largest and most competitive enterprise in the same industry in China. The rock wool production line, polyurethane rock wool color steel composite panel production line and EPS phenolic foam production line developed by our company have all reached the international advanced level and have passed ISO 9001 quality management system certification. The products sell well in more than 30 provinces, cities and autonomous regions, and are exported to Europe, Central Asia and Southeast Asia. With first-class technology and first-class products, the company provides customers with high-quality services from product design, research and development, production, installation training to after-sales. It is regarded by the majority of users as an excellent enterprise that "keeps its promise and values service", and has been awarded the famous brand product of Hebei Province. welcome experts, friends, new and old customers from all walks of life to patronize and communicate with us to create brilliance and win-win future together.
Packaging & Shipping

FAQ

Q: Where is the factory located? A: We are located in Xinji, Hebei Province, near Beijing airport. You could fly to Beijing Airport, we could pick you there. Q: Do you accept on-site inspection to check your machine and your factory?
A: Before shipment, every equipment will be trail tested in our factory, we invite all the client to do on-site inspection during trail testing.
Q: What payment terms do you prefer?
A: T/T, L/C, West Union, Cash etc.
Q:How long is the validity of quotation?
A:Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
Q:What is your delivery time?
A:Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 1-3 month,It depend on the order quantity.
Q:Do you provide OEM/ODM Service?
A:Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
Q:How can we ensure quality?
A:The final inspection is always carried out before shipment.
Q:How to install the equipment after purchasing?
A:We will provide a professional installation video to illustrate.Also provide a manual.
Q:Do you offer a guarantee?
A:Yes, we guarantee our product for one year. Provide after-sales service support with and agricultural technical support.
Q:What is your MOQ?
A:1 Sets

---
