Advanced PP PE Pet PVC Plastic Film Recycling Washing Line

Product Description

PP PE PET PVC Plastic Film Washing Line,You can put dirty film direct to wash it, after washing it you can use them to pelletize or injection or do other things. 1. The whole line is flowing is : conveyer belt - crusher - Screw loader - floating - screw loader - frication machine - Screw loader - dewater - screw loader - hot pipe dryer.
2. The capacity can be supplized accroding to your requrement, such as : 300kg/h, 500kg/h, 800kg/h, 1000kg/h,1500kg/h, 2000kg/h
3. How many parts do you need is according to your require.such as floating ,you can use one set or two sets, and also three sets, this is up to how dirty of your raw material.
4. You can choose full automatic or half-automatic line
5. We have SGS certifcation, past CE certifcation.
6. After drying the water content can reach 5-8% (according to the thickness of film).
The plastic machine is special for PE PP PVC PET BOPP film crushing, washing and drying production line , it can easily wash waste plastic products. Waste and dirty agricultural films, waste packing material and hard plastics can be treated step by step with this facility.
1.Raw Material & Final Product:

Raw material & Formulation	Post-consumer PET bottles/ flakes
Final Product & Output Capacity	300Kg/h
Description of Final Product	1. Moisture: max 5% 2. Bulk density: 0.3G/CM3 3. Particle size: 50-80mm (can be designed as per special requirement)

2.Work Condition:

Warehouse/Workshop	Dimension (M*M*M): 50(L)×8(W)×5(H); If workshop is small, turn the machine around.
Power supply & Installation power	3-phase, 380 V, 50 Hz; (do as customer's request)
Wire/cables(provide by customer)	Wires/cables from power supply to control cabinet of this production line; all electrical cables from control cabinet to each machine.
Water supply hose/pipe(provide by customer)	Water supply to machines and pools

3.Energy Consumption:

Installation power	220Kw ( Actual Consumption 150Kw )
Water supply	Consumption: ~8 tons per hour recycling water. Pressure: 0.6Mpa
Manpower	3 Persons

Every parts list

Item	Name	Specification	Quantity
1	Belt conveyer	2.2kw	1 pc.
2	Label separator machine	22kw	1 pc.
3	Belt convener	2.2 kw	1 pc.
4	Crusher	37kw	1 pc.
5	380 Screw loader	2.2kw	1 pc.
6	Hot washer	5.5kw	1 pc.
7	380 Screw loader	2.2 kw	1 pc.
8	Friction washer	11kw	1 pc.
9	200 Single screw rinsing washer	2.2kw	1 pc.
10	Screw loader	2.2kw	1 pc.
11	200 Single screw rinsing washer	2.2kw	1 pc.
12	Screw loader	2.2kw	1 pc.
13	Centrifugal dewaterer	5.5 kw	1 pc.
14	Pipe drying system	24 kw+4kw*2	1 pc.
15	Storage bunker	1 m3	1 pc.
16	Electrical equipment	schineder	1 pc.

More photoes in the factory Belt conveyer send to crusher to crush the material into small pieces. belt conveyer:690*4500mm, 2.2KW,rv90,with inverter, after crush,the material will send into the floating machine by rotary charger
Rotary charger: φ380*3500,diameter is φ3mm, xwd4,3kw,rotat: 9

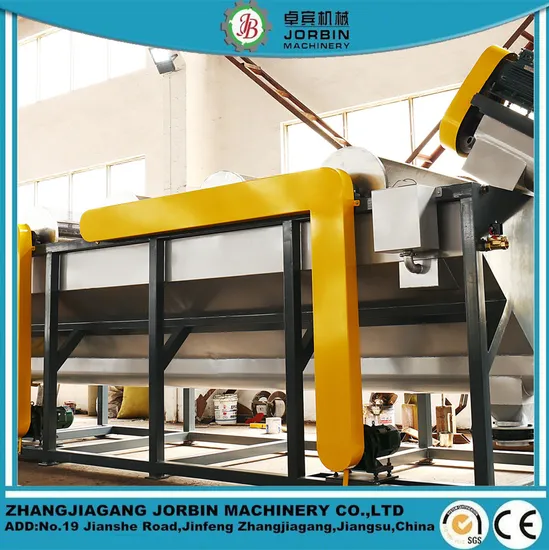

Floating machine:1500*4500mm
1.Effective length: 4000mm
2.Power of motor: 2.2kw
3.Screw diameter: 200mm
4.Screw speed :25rpm
5.Material : Stainless steel
6.Discharging mode: bottom discharge
7.Quantity of roller :4
8.Dimension: 6000*1200*1850mm
9.Weight: 1220kg
Friction washer
Hot washer
1.Main motor power:5.5kw
2.Diameter of the barrel:Φ1000mm
3.Effective volume :3.5 m3
4.Speed of screw:21rpm
5.Heating method:Steam heating
6.Dimension: 2600*Φ1900*2500
7.Weight: 1550kg
8.Material:Stainless steel
Pipe dry system
1.Power of blower motor:11kw
2.Heating power:48kw
3.Material of stacker:Stainless steel
4.Cooling method:Blowing
5.Length of tube :18m
6.Diameter of tube:Φ219mm
7.Dimension :3400 x2700 x2100mm
8.Weight : 300kg
Dewater machine
1.Motor power:75kw
2.Sewage motor:2.2kw
3.Aperture of sieve:φ3mm
4.Rotary speed:1480rpm
5.Dewatering method:Centrifugal
6.Dimension:6000*1200*1850mm
7.Weight:1220kg
7.Material:Carbon steel
Silo
If you need more detail of the machine kindly feel free to contact me, I can send you more photoes and vedio, we also can make desig for you up to your raw material 1. We supply below necessary documents with the machine:
Machine layout Electricity diagram Machine certificate General manual book/maintenance book 2. We provides one-year quality guarantee. During this period, if the machine's malfunction is approved to be our responsibility, we will send the broken spare parts to you with DHL courier or other way within 7 workdays after receiving the complainant. And send the technicians to the buyer's factory for maintaining. All charges are in our account.
3. After one year guarantee, If you need we can provides payable spare parts and technician's VISITING maintenance, and any broken spares we can send you soon as possible.
4. We trust that our quotation meets with your requirements and we will gladly furnish you with further information.
5. 24Hours service : Cell+86-13915707468

---
