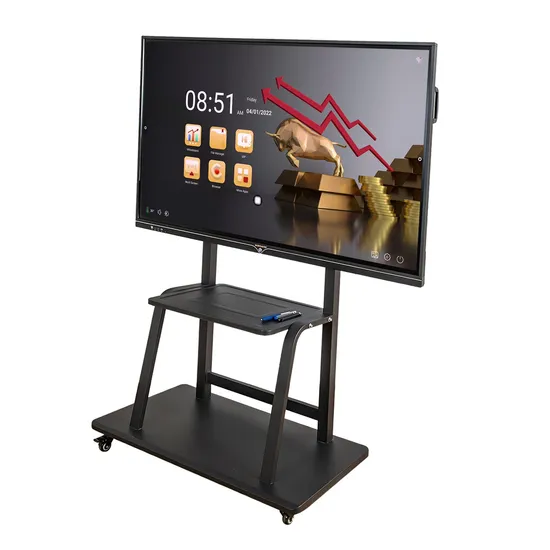

Hot Monitor 3840*2160 4K Finger Touch Interactive Whiteboard Meeting Interactive Flat Panel Teaching Smart Board 65, 75, 85, 86, 98 Dual WiFi Interactive

Product Description

MiBoard IFP Interactive Flat Panel is one kind of large touch screen,which uses infrared technology to convert the screen into interactive screen. It combines touch frame, stereo and OPS computer. It uses infrared
touch technology, which allows 20 people to write at the same time. Users can touch it by finger,pen or some other non-transparent object. They are greatly used in the education teaching, business meeting,training and so on.

Specification
Item	Description	IFP55	IFP65	IFP75	IFP85
Panel	Diagonal Size	55"	65"	75"	85"
	Backlight Type	D-LED	D-LED	D-LED	D-LED
	Aspect Ratio	16:09	16:09	16:09	16:09
	Resolution	3840*2160	3840*2160	3840*2160	3840*2160
	Brightness(typ)/(min)	300	350	500	480
	Display Size(mm)	1,208*677	1,428*803	1,652*930	1,870*1,051
	Contrast Ratio (typ)/(min)	4000:1
	Response Time(typ)/(min)	5ms
	Depth of Color	10 bit
	Viewing Angel	178°
	Lift time	≥50,000 hours
Touch	Touch Technology	High-precision Infrared Technology
	Glass	4mm Anti-glare toughened glass
	Touch Points	20 Points
	Touch Accuracy	≤1mm
	Response time	<8ms
Android	CPU	Quad-Core Cortex-A55@ 1200 MHZ
	GPU	Mali-G52
	RAM&ROM	3GB/32GB
	Version	Android 9.0
Power	Power Supply	100-240V 50/60 Hz
	Power Consumption	≤120W	≤200W	≤270W	≤330W
Ports	Back Side Ports	HDMI IN*2, USB2.0*2, Touch Out*1, Optical Out*1 VGA In*1, PC Audio In*1, Earphone Out*1, AV In*1, AV Out*1,RS232*1, YPBPR*1, RJ45 In*1, SPDIF*1
	Front Ports	USB2.0*1 USB3.0*1	HDMI*1, Touch Out*1, USB Public*1, USB OPS*1
Size	Panel Size(mm)	1257*745*82	1480*890*89	1706*1014*89	1952*1153*89
	Package Size(mm)	1366*185*891	1366*185*892	1846*215*1180	2092*215*1319
Weight	Net Weight(KG)	23.5	37.2	54	66
	Gross Weight	30.5	46	69	83
Speaker	Audio Out Power 15W*2 8Ω
Environment	Working Temperature - 0ºC~40ºC, Operational humidity≤80% RH, Storage temperature:-10ºC~60ºC, Altitude Below 5000 meters.
Accessories	Remote Control*1, Power Cord*1(3m), HDMI cable(3m), Touch Cable*1 (2m), Passive pen*1, Wall mount*1
Warranty	3 years return workshop
Special Features	Built with Google Play, Enable Annotation in all Channels, Screenshot, Gesture Eraser, Smart Writing,Dual Pens with two colors writing.
Components	Power Cable, HDMI Cable , Touch Cable, Controller, Wall Hanger, Passive Pen.
Optional Components	Movable Stand, Sound Bar, Pen with two tips, OPS , Pointer.

Our Advantages
1. MiBoard IFP supports OPS real 4K 60HZ 3840x2160 and 4096x2160.

2.There is one USB port which is shared for Windows and Android OS, which is easy for users to use the USB flash disk directly. It has Power button which is easy to turn on or off the IFP.
3. We use strong carton package, which is as strong as the wooden carton. It will not be easy to be damaged during transportation.
4.We have all kinds of sizes to meet different customer requirements.Including 55'', 65'', 75'', 85'' and 98''. We also can customize the smaller sizes or larger sizes to you.
5. It has 32GB flash memory, which is enough for users to install some apk freely.
It has installed Google Play Store and APKPure. Users can install and uninstall Apk easily.
Installation Instructions
MiBoard IFP comes with wall hang device, and the floor stand device is optional. If you want it, you can purchase it separately.

Packing Size

55" IFP SIZE: 1366.6*185*891.5mm

65" IFP SIZE: 1600*205*1001.5mm

75" IFP SIZE: 1846*215*1180mm

85" IFP SIZE: 2092*215*1319mm

98" IFP SIZE: 2357*215*1478mm

Certifications
Packaging & Shipping

---
