X7140 Swivel Head Bed Type Milling Machine

US$7,000.00-15,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

XA7140

Type

Universal Milling Machine

Object

Hardware

Structure

Bed type

Milling Cutter Type

Vertical Milling Cutter

Milling Cutter Structure

Indexable Type

Controlling Mode

Elelctric

Automatic Grade

Semiautomatic

Precision

High Precision

Certification

GS, CE, ISO 9001

Condition

New

X7140 Swivel Head Bed Type Milling Machi

1400X400mm

Spindle Taper

ISO50

Spindle Speed

18--1800rpm

Travel Longitudinal (X)

800mm

Trave Cross (Y)

400

Trave Vertical (Z)

650

Distance Spindle to Column

650mm

Spindle Head Tilting Range

360 Degree

Distance Spindle to Table

0-700mm

Main Motor Power

7.5kw

Transport Package

Wooden Case, No Need Fumigation, Plastic Cover

Specification

CE, ISO9001

Trademark

UNI-TECH

Origin

Shandong, China

HS Code

84592900

Production Capacity

400PCS/Month

Product Description

X7140 swivel head bed type milling machine

Specifications	Units	XA7140
Table size	mm	1400×400
Table travel	mm	800×400
Number/Width/Distance of T-slot	mm	3-18-100
Max. load of table	kg	800
Distance from spindle axis to column guideway	mm	520
Distance from spindle nose to table surface	mm	150-650
Spindle taper		ISO50
Quill travel	mm	105
Spindle speed range (infintely variable speed)	rpm	18-1800
Overall dimension	mm	2290×1840×2120
Spindle motor power	kW	7.5
Machine weight	kg	3860

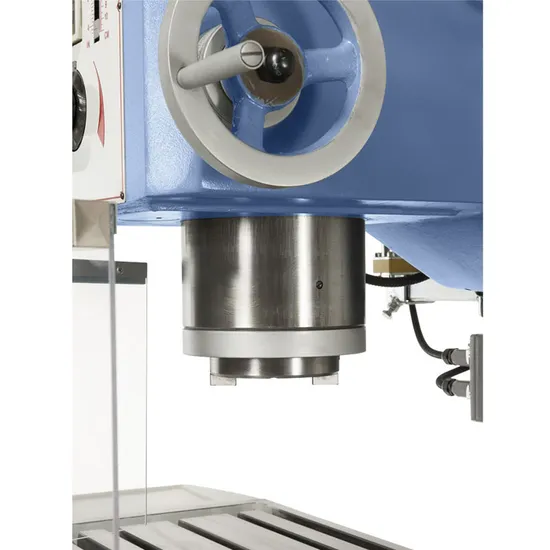

Main features: Solid, grey cast iron construction allows heavy table loadLarge flat guide guarantees stability at heavy millingHandwheel allows feed (100 mm) of oversize spindlePolished table, supported well by wide saddleWide speed range (20 - 1800 rpm) feat. high torque and spindle brakeStepless speed adjustment comes standardInductive hardened and polished guide waysReinforced saddle in robust box constructionColumn and machine stand are solidly designed
Standard accessories:
1.Drawbar M 10 / M 12 / M 16 / M 24
2.WORK light
3.Coolant device
4.Taper shell end mill holder ISO 50 / 40 mm
5.Adapter ISO 50 / MT 4
6.Central lubrication
7.Telescope cover in z-axis
8.Stepless speed adjustment
9.Anchor bolts
10.Universal protective device
11.Tools

Optional accessories:
1.Mill chuck set ER 40, ISO 50, 3 - 25 mm, 16 pcs.
2.Horizontal & vertical rotary table HV 12 - 300 mm
3.Tiltable rotary table TSK 320
4.Semi-universal dividing head BS-1
5.Deluxe clamping kit set 58 pcs., 18 mm, M 16
