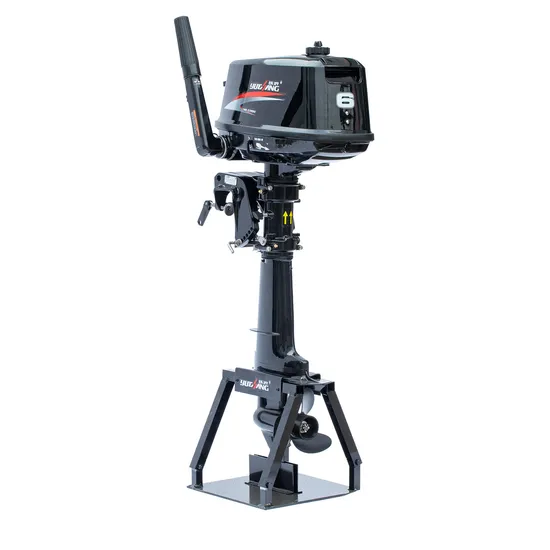

| Model 6HP |
| Demension Overall Length: 500mm(19.6in) Overall Width: 290mm( 11.4in) Overall HeightL: 1050mm(41.3in) |
| Weight S: 20.5Kg(45.1lbs) L: 21Kg(46.2lbs) |
| Full Throttle Operating Range 4500-5500r/m |
| Maximum Output 3.7-5.0kw/6hp |
| Idling Speed 1150±50r/m |
| Displacement 102cc |
| Bore X Stroke 55X43mm(2.16X1.69in) |
| Ignition System CDI |
| Spark Plug NGKBR7HS-10 |
| Spark Plug Gap 0.6-0.7mm |
| Control System Tiller Handle |
| Starting System Manual |
| Starting Carburation System Choke Valve |
| Gear Position Forward-Neutral-Revers |
| Gear Ratio 2.2 (28:13) |
| Trim And Tilt System Manual Tit |
| Recommended Fuel Unlead Gasoline |
| Recommended Engine Oil 2-Stroke Outboard Motor Oil |
| Blended Fuel Oil Ratio 50:1 |
| Gear Oil 0.1L |
| Fuel Tank Capacity 12L |
| Torque 8.5N.m/2500rpm |
| Propeller 7.8X8.0 |
| Fuel Consumption 3.5L/h |
| Packing Size 110*61*38.5CM |
