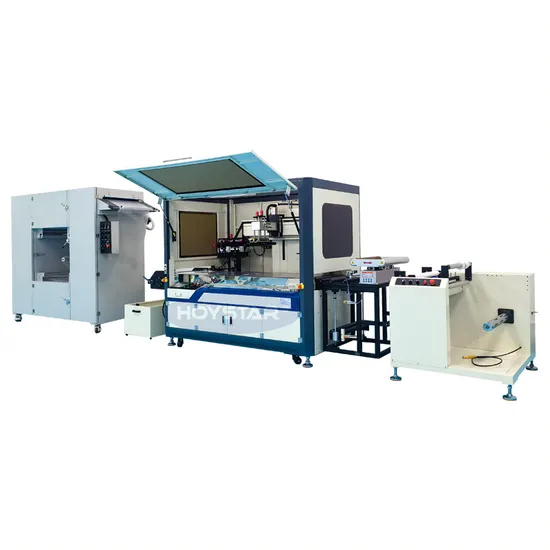

Pet Film Roll to Roll Screen Printing Machine

Product Description

Product Description
what can do this machine?
With CCD function, high accuracy printing
Household appliances:PCB,PVC,PET,Panel printing of electric cooker,induction cooker,washing machine and air conditioner.
Electronics industry:Electrical membrane switch,flexible printed circuit,copper foil,aluminum foil,LED printed circuit.
Communication &information industry:Mobile phone shell,mobile phone keypad,battery accessories,peripheral terminal equipment.
Clothing & textile industry:Transfer printing and tagless labels in clothing and textile industry.
Traffic & shipping marks:Container and automobile compartment labels,motorcycle/bicycle decals.
Instrument industry:Electronic switch and instrument panel labels.
Function:
1. Roll material automatic printing,repeatable color register,fast printing speed,can reach 1200-1800 printing times/per hour(according to product size to determine).
2. The use of touch screen man-machine interface control, easy to operate.
3. Multi-color printing using photoelectric eye tracking, PLC+ color code sensor control system para-position,automatic,detection of color code,if there is abnormal automatic stop machine.
4. Can optional set the screen position,printing pressure,squeegee speed,frame height etc.
5. Can optional set printing speed,calculate printing quantity,reach setting quantity will automatic stop and alarm.
6. Has abnormal as well as no product will automatic stop and alarm.
7. The use of three section type air suction device,can according to printing material request to adjust strong wind, weak wind, off.
8. Printing machine is equipped with auxiliary inspection working lamp,that convenient for check out defective products.
Technical parameter:

max.fram width	330mm	max.printing area	320*600mm
max.screen frame	700*1000mm	thickness of printng material	0.038-0.125mm
min.printing jump distance	10mm	working pressure	4-8
work power	380v,26kw	two times printing color accuracy	+-0.05-0.1
Host size	2700*1150*1650mm	oven temperature	130c

Detailed Photos

Printed Sample Show

---
