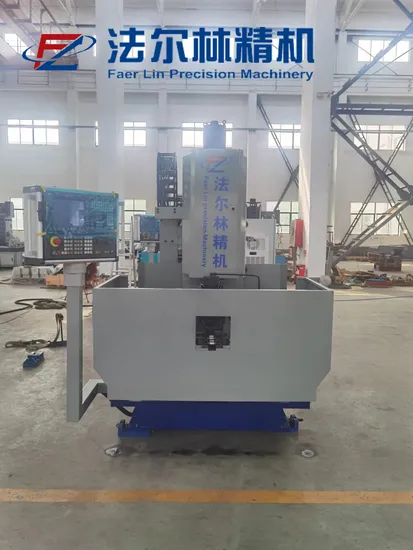

Vertical CNC Drilling Machine for T75 Elevator Guide Rail Bolt Mounting Hole

Product Description

Product Description

Product Performance

Applicable product scope T75_ T127-2 Installation holes for various specifications of elevator guide rail bolts

Processing beat time Machining time of four holes at one end of T89/B guide rail is ≤ 40 "

Required area of complete equipment 3mX3m (L x W)

Air source required for starting the whole machine 0.6Mpa

Structural features

The base is made of structural parts, and the other main parts are made of high-strength cast iron and resin sand.

The column is fixed on the cross carriage, and the cross carriage moves in X direction along the longitudinal direction: the carriage moves in Y direction along the front and back; The spindle box moves up and down in Z direction.

X\Y\Z three-axis guide pairs all adopt linear rolling guide

X/Y/Z axis is driven by the AC servo motor to rotate the ball screw for working movement

The spindle structure has good rigidity and high precision. The connection between the spindle and the tool adopts mechanical quick change powerful chuck, which is convenient for tool replacement.

Cooling and chip removal: the machine tool is wet processing and adopts automatic chip removal device.

For the pneumatic valve configured for the machine tool, the clamp uses multiple force to increase the cylinder, and clamps, loosens and reverses through the air valve system. The machine tool is equipped with a programmable automatic centralized lubrication device.

Product Parameters

ITEM	UNIT	ZK5225
X axis travel	mm	200
Y axis travel	mm	200
Z axis travel	mm	400
spindle taper		BT40
Spindle speed	rpm	50-1500
Spindle motor power	kw	7.5(Ball speed regulation)
X, Y Z axis feed speed	mm/min	1-500
X-axis fast moving speed	mm/min	5000
Y Z axis fast moving speed	mm/min	3000
Positioning accuracy	mm	±0.03

Detailed Photos
Recommended products
After Sales Service
Company Profile
1.General Information
Changzhou Faer Lin Precision Machinery Co., Ltd.
About Us Changzhou Faer Lin Precision Machinery Co., Ltd. is a leading company located in Bingjiang economic development zone, new north district, Changzhou, Jiangsu, China. With a total plant area of 30006m2 and a construction area of 15000m2, we are committed to providing high-quality automatic line and CNC special machines with exceptional accuracy and efficiency.
Business Growth Over the past 5 years, our business has experienced tremendous growth. Our sales revenue has increased from RMB 5 million in 2012 to approximately RMB 50 million in 2016. This remarkable growth highlights our dedication to delivering top-notch products and services.
High-Technology Enterprise In 2015, Changzhou Faer Lin Precision Machinery Co., Ltd. was recognized as a Jiangsu high-technology enterprise. We take pride in our 22 high-technology products and more than 20 patented technologies, which demonstrate our commitment to innovation and excellence.
Company Team Our team consists of exceptional talents from Jiangsu Duoleng CNC Machine Co., Ltd. (formerly known as Changzhou General Machine Factory), who possess over ten years of experience in state-owned company management, product design, sales, R&D, manufacturing process, and production. With a dedicated team of 70 employees, including professionals with senior, medium-grade, and junior professional titles, we have the expertise to develop and manufacture first-class CNC machines and special machines.
Joint-Stock Company Since our foundation, we have been operating and managing the company in accordance with joint-stock company requirements. Our clear and reasonable organizational structure ensures efficient and smooth operations.
Certifications
FAQ
Product Description
Product Description MOQ: 1 set
DELIVERY TIME: The delivery time depends on the machine and model you choose. All machines are 100% new and not used.
How can I choose the most suitable machines?
Please provide us with the machine type or parameter you are interested in, and we will quote you the best price. You can also inform us about the materials and size of the workpiece, or send us product pictures that you will process, and we will select the most suitable machine for you.
Do you provide after-sales service?
Yes, we offer a one-year warranty.
Are you a factory or trading company?
We are a manufacturer factory.
Why choose to cooperate with us?
Reliable Quality: All components are sourced from world-leading suppliers.
Cost-effective export infrastructure and total supply chain management.
How does your factory ensure quality control?
Reliable Quality is our dignity, and we implement quality checks at various stages including Incoming Quality Control, In Process Quality Control, Outgoing Quality Control, Environment Control, Product Traceability System, Internal Audits & Calibration, Equipment Control & Maintenance, Control of Non-Conforming Materials, and more.
Thank you for considering our products. If you have any further questions or inquiries, please feel free to contact us.
