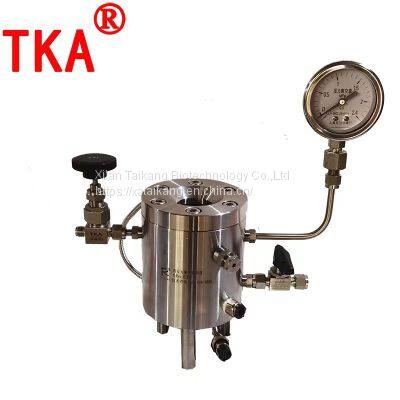

This product is used for chemical, chemical high-pressure synthesis or catalytic reaction, it is necessary to measure the temperature, measure the rotational speed, add inert gas, stabilize the pressure and realize the required experimental environment such as online sampling.
1.The entire reaction process can be observed during the reaction.
2. The observation window adopts JGS2 high transmittance quartz glass to realize online photochemical reaction under high pressure.
Volume
| 25ml,50ml,100ml,200ml,500ml,Can be costomized
|
Reactor Material
| Stainless steel 316L/Titanium/Hastelloy (optional)
|
Operating pressure
| 10MPa/20MPA(optional)
|
| Valve and Connecting material | Stainless steel SU316L
|
Reactor liner container:
| inner sleeve easy to clean
|
Transparent window material:
| using polished JGS2 quartz glass (pressure window) or sapphire mirror
|
Operating temperature
| The Max tem.p is 350ºC for Titanium/Hastelloy (optional),The Max tem.p is 250ºC for stainless steel.The tem.p display accuracy is ±1ºC.
|
mixing speed
| 0-1500RPM
|
Speed Accurac
| ±5RPM
|
