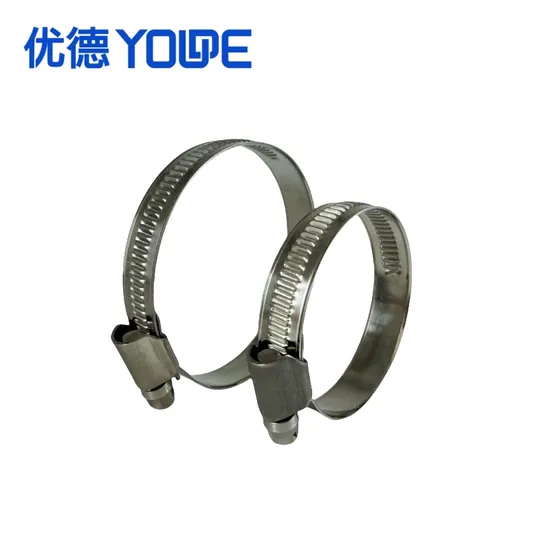

Factory Direct Price 316 Stainless Steel Quick Release Hydraulic Heavy Duty Pipe Clamp German Type Hose Clip Hose Clamp

Product Description

Product Description:Name: German Type Hose Clamp, also called worm gear clamps or worm drive clamps.Structure: Band, housing and screw.Surface treatment: Zinc plated, nickel plated.Color: Silver, yellow.Screw shape: Cross, slotted.Application: Widely used for connecting hoses of automobile pipelines, water pumps, fans, food machinery, chemical machinery and other industries.Material: W1, W2, W4, W5(See as below)Feature: Superior corrosion resistance.The punched perforated band enables clamps to install easily and hold tightening.Multi-clamping range.Logo can be stamped on the housing or band as customer request.

Material	Band	Housing	Screw	Suggested install torque
W1	Zinc plated steel	Zinc plated steel	Zinc plated steel	3.0Nm
W2	AISI 201SS	AISI 201SS	Zinc plated steel	4.9Nm
W4	AISI 201SS/304SS	AISI 201SS/304SS	AISI 201SS/304SS
W5	AISI 316SS	AISI 316SS	AISI 316SS

Detailed Photos:
Product Parameters:

Size(mm)	Band Width(mm)	Pcs/Bag	Pcs/CTN	Suggested Install Torque
8-12	9	100	1000	4.0Nm
10-16	9	100	1000	4.0Nm
12-22	9	100	1000	4.0Nm
16-27	9	100	1000	4.0Nm
20-32	9	50	1000	4.9Nm
25-40	9	50	500	4.9Nm
30-45	9	50	500	4.9Nm
35-50	9	50	500	4.9Nm
40-60	9	50	500	4.9Nm
50-70	9	25	500	4.9Nm
60-80	9	25	500	4.9Nm
70-90	9	25	500	4.9Nm
80-100	9	25	250	4.9Nm
90-110	9	25	250	4.9Nm
100-120	9	10	200	4.9Nm
110-130	9	10	200	4.9Nm
120-140	9	10	200	4.9Nm
130-150	9	10	200	4.9Nm
140-160	9	10	200	4.9Nm

Why Choose Us?
1. We have fully experience to make the right product you need. High quality to normal.
2. Every batch of material will be tested carefully, including thickness, chemical compositon and hardness.
3. No burrs, easy and safe when installing.
4. Antirust, good wear resistance. 304ss has strong oxidation resistance in humid environments.
5. We can make wide range of sizes, full perforation can be produced.
6. No-load torque is less than 0.6Nm, very easy to twist even use common screwdriver. Load torque is bigger than 7Nm, can fasten hose very tightly.
Main Products:
Application:
Package&Shipping:
Foreign Exhibition:
Our Company:
As a Chinese supplier of hose clamps and stamping metal parts, we have more than 15 years design, production and exporting experience. Our own engineer, can understand your unique needs and we know not every solution is on the shelf. Customer not only can get your qualified products from Youde, can also get ideas help enlarge your business scale. Not only customer, but also friends and partners.
After years of production management experience, we achieve cost savings without reducing product quality by optimizing production processes, centralized procurement, employee training and other methods, and strive to allow customers to purchase products with higher cost performance.
We provide one-stop services from design and technical support to sales services. Always putting customer's principled satisfaction as the top priority is the key to our success.

---
