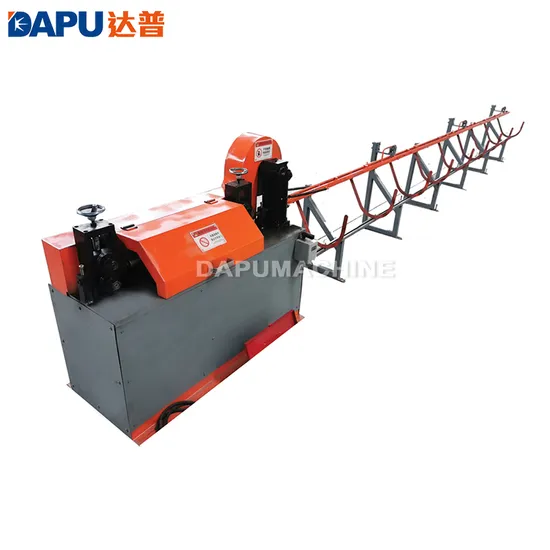

High-Speed Multi-Type Galvanized Steel Rebar Wire Straightening & Cutting Machine Equipment Manufacturer

US$2,000.00

1 Set

US$1,900.00

2 Set

US$1,800.00

3+ Set

Basic Info.

Model NO.

DP-GT

Usage

Wire, Bar

Voltage

as Your Request

Automatic Grade

Automatic

Principle

Small Deformation

Certification

ISO9001, CE

Warranty

12 Months

Customized

Condition

New

After-Sale Service

Engineers Is Available for Installation Overseas

Wire Diameter

Min.2mm; Max.18mm

Cut Length

Min.100mm; Max.12000mm

Cut Error

1mm

Capacity

Min.40m/Min; Max.130m/Min

Training Workers

Yes

Straightening Motor

Min.1.5kw; Max.3.7kw

Cutting Motor

Min.1.5kw; Max.9.5kw

Transport Package

Wooden Pallet, Plastic Package in Container

Specification

CE, ISO9001

Trademark

DAPU

Origin

Anping, Hebei, China

HS Code

8515809090

Production Capacity

Max. 130m/Min

Packaging & Delivery

Package Size

350.00cm * 160.00cm * 125.00cm

Package Gross Weight

300.000kg

Product Description

Wire Straightening and Cutting Machine with Mutil Type

Model	GT2-3.5H	GT2-4	GT2-6+
Wire diameter	2-3.5mm	2-4mm	2-6mm
Cutting length	300-2500/3000mm	100-1200mm	100-6000mm
Speed	Max.60-80m/min	Max.100m/min	Max.40-60m/min
Cut error	1mm	0.5mm	1mm
Straightening motor	4	1.5	2.2
Cutting motor	--	1.5kw	1.5kw

Model	GT3-6H	GT3-8H
Wire diameter	3-6mm	3-8mm
Cutting length	330-6000mm	100-6000/12000mm
Speed	Max.120m/min	Max.120m/min
Cut error	1mm	1mm
Straightening motor	7	15
Cutting motor	3kw	3kw

Model	GT4-12H
Wire diameter	4-12mm wire rod 4-12mm rebar
Cutting length	280-12000mm
Speed	Max.45m/min
Cut error	5mm
Straightening motor	11
Cutting motor	4kw

Model	GT6-12	GT6-14
Wire diameter	6-12mm wire rod 5-10mm rebar	6-14mm wire rod 5-12mm rebar
Cutting length	280/600-12000mm	280-12000mm
Speed	Max.70-130m/min	Max.52m/min
Cut error	5mm	5mm
Straightening motor	30	11
Cutting motor	7.5kw	5.5kw
