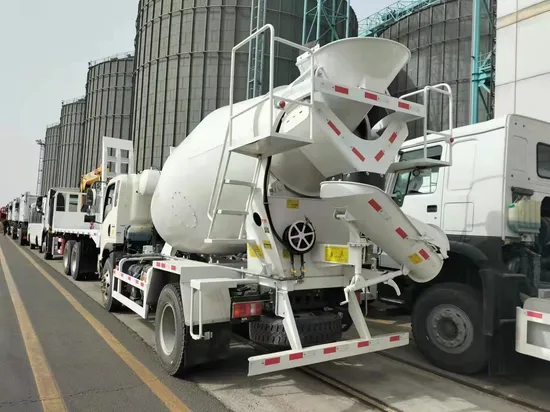

Construction Equipments Mobile Truck Mounted Concrete Mixer

Product Description

Construction Equipments Mobile Truck Mounted Concrete Mixer 1. 3C, ISO 90012. Factory direct sale
3. Low price high quality

Concrete mixer truck is a special truck used for transporting construction concrete. Due to its shape, it is often called a river snail truck. This kind of truck equipped cylindrical mixing drum to carry mixed concrete.

During the process of transportation will always keeping the mixing tube rotated to ensure that the concrete does not solidification.

After transportation the concrete, usually rinse the mixing tube's inside, to prevent the hardened concrete take up the space, so that can avoid the volume of the mixing tube become less and less.
Concrete mixer truck's composition: Chassis, transmission system, hydraulic system, rack, mixing tank, in and out device, water supply system, control system, human ladder etc.

Item		unit	parameters
Vehicle model			CLW5250GJBZ4
Chassis model			ZZ1257N4047D1L
Overall dimensions		mm	9720×2500×3990
	Horsepower	hp	340
	GVW	kg	Appro×25000
	Rated loading capacity		Appro×10600
	Curb weight		Appro×14270
	Wheel base	mm	4025+1350
	Front suspension / Rear suspension		1500/2845
	Front Wheel track / Rear Wheel track		2022/1830
	Approach/departure angle	°	16/15
Exhaust/hp		ml/kw	9726/250
Max speed		km/h	78
Tire specification		11.00-20 18PR,11.00R20 16PR,12.00-20 16PR,12.00R20 14PR	Engine model(optional)	T10.34-40
Number of tires		10	Leaf Spring	9/12,10/12,4/12,4/-
Number of axles		3	Emission standard	Euro 4
Operation control system		Electrically hydraulic control	Allowable passengers in cab	2
Others		Protective part material: Q235A carbon steel. Rear protective section size: 120×50mm, with 500mm terrain clearance. Equipped with tachograph with satellite positioning function.
Engine		Sino Truck Diesel Engine
Production cycle		10-15 working days
