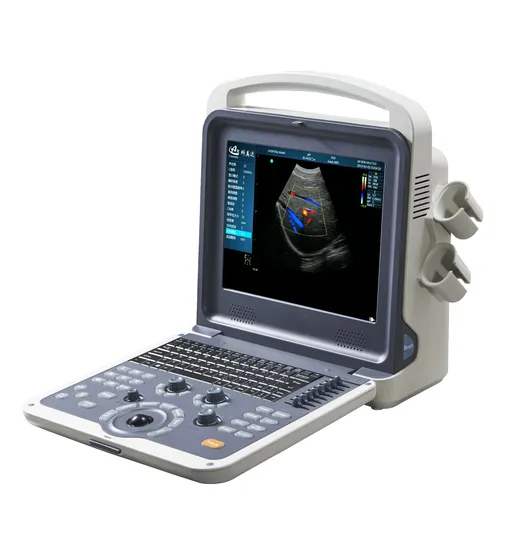

Cheap Color Doppler Ultrasound Scanner

Product Description

Dimensions and Weight Dimensions of main unit (approx.): 365 mm (Length) * 148 mm (Width) * 374 mm (Height) Net weight of main unit (approx.): 6.5 kg (no probe included)
Operation Conditions Ambient temperature: +5ºC to +40ºC Relative humidity: 30% to 80% Atmospheric Pressure: 860hPa to 1060hPa
Appearance Smart, clamshell design LED medical monitor Backlit operation panel 8 TGC slides for easy adjustment Floating keyboard Two active probe ports Two probe holders Print directly from the keyboard
Electrical Power Adapter Power supply voltage:AC220V±22V, 50Hz±1Hz Main system power input: ≤120VA
Display Screen High resolution color LED medical monitor - Resolution:1024*768
Probe
Transducer Types 3.5Mhz convex probe (2.0/ 3.0/ 3.5/ 4.0/ 5.5Mhz) 7.5Mhz linear probe (6.0/ 6.5/ 7.5/ 10.0/ 12.0Mhz) 6.5Mhz transvaginal probe (5.0/ 6.0/ 6.5/ 7.5/ 9.0Mhz)
Applications
Normal
MSK
ABD ABD Aorta R_Kidney L_Kidney Bladder Prostate OB Early_OB RT_Ovary Lt_Ovary Uterus Fetal _ Biometry Long _ Bones AFI Pelvic Uterus RT_Ovary Lt_Ovary Rt_Follicle Lt Follicle Urology R_Kidney L_Kidney Bladder Prostate Rt_Testicle Lt_Testicle Cardiac RV/LV LV_Simps. LA/AO MV LV_Mass_A/L Qp/Qs Small Parts Rt_Thyroid Lt_Thyroid Rt_Testicle Lt_Testicle Vessel Breast Vascular Stenosis_D Stenosis_A Intima Arterial Venous
Function Speckled Reduction THI - Tissue Harmonic Imaging Izoom - Instant full screen zoom MBF - Multi Beam Former SA - Synthetic Aperture Ultrasonic imaging CDF - Continuous Dynamic Focusing PW - Pulse Wave Doppler
Display mode B 2B 4B B|M M PW B|PW B steer Triplex mode THI Biopsy (option)
Standard Configuration High resolution LED medical monitor 2 active probe ports SSD - 16G two USB ports Video Port S-Video Port Remote Port LAN1/2 port VGA port THI Measurement package Report Preset Comment
Printer: EPSON-L130-Series EPSON-L120Series EPSON-L121 HP-LaserJet-1020 HP-LaserJet-P2035 SONY UP-D897 SONY UP-D898MD SONY UP-X898MD
Imaging processing and presentation
Zoom Real time zooming - 8 Steps: ×1.0, ×2.0, ×3.0, ×4.0, ×5.0, ×6.0, ×7.0, ×8.0
Selectable zooming position
Image Format BMP JPEG PNG DICOM(Option)
Focus Continuous dynamic focus 1~16 selectable transmit focus Acoustic lens focus 1, 2, 3, 4 focus
Memory
Cine‐memory B mode M mode CF mode PW mode Gray
- 256
Max. signal dynamic range
- ≥150dB
Max. display depth
-≥300mm
Imaging Resolution
-≤0.5 mm
B mode Specification adjustment Power (0 - 15) Frequency (2.0 - 12.0Mhz) ScanDensity (Low/high) Dynamic (0 - 150dB) Smooth (0 - 7) Frame (0 - 7) Harmonics ON/OFF Focus# (1 - 4) Sector (5% - 100%) Wideband ON/OFF Enhance (0 - 7) Gray map (1 - 16) Horizontal (ON/OFF) Vertical (ON/OFF) Chroma (0 - 15)
CF mode Specification adjustment Power (0 - 15) Frequency (2.0 - 12.0Mhz) Display mode (V/T/POW) Steer (-20 - 20) PRF Baseline (0 - 6) Threshold (0 - 3) Wall Filter (0 - 3) C Frame (0 - 7) Ensemble (8 - 15) LineDensity High/Low Spatial Filter (0 - 3) C Gain (0 - 127) Color Invert (ON/OFF)
B+C+D mode Specification adjustment Power (0 - 15) Frequency (2.0 - 12.0Mhz) D Gain (0 - 155) Display mode (Synchro/Refresh) Steer (-20 - 20) PRF Volume (0 - 255) D Velocity (0 - 2) Triplex (ON/OFF) Enhance ( 0 - 7) Wall Filter (0 - 3) Baseline (0 - 6) Wave Invert (ON/OFF) Chroma (0 - 6)
B/M mode Specification adjustment Power (0 - 15) Frequency (2.0 - 12.0Mhz) ScanDensity (Low/high) Dynamic (0 - 150dB) Smooth (0 - 7) Frame (0 - 7) Harmonics ON/OFF Focus# (1 - 4) Sector (0 - 100%) M Speed (0 - 3) Wideband ON/OFF Enhance (0 - 7) Gray map (1 - 25)
Measurement
Normal Volume V3L STD_S Area Trace Mtime MHR D Time DV D Common D Auto Area Angle CrossLine STD D ParalleLine Mdist MV D HR DA D Trace
ABD
ABD Liver GB GBWT -CBD Portal Vein Spleen
Aorta Prox_Ao_AP Mid_Ao_AP Dist Ao AP Rt Iliac AP Lt_Iliac_AP Prox Ao Width Mid Ao Width Dist Ao Width
R_Kidney & L_Kidney Volumn_Kidney Cortex_Kidney
Bladder Volumn_Bladder Blad _Wall Rt_Ureter Lt_Ureter Pre-void Volume Post-void Volum
Prostate Volumn_Prostate
OB
Early_OB GS CRL YS NT BPD CxLength LV
Rt-Ovary Rt_Ovary_Volumn Rt_Cyst_1_Volumn Rt_Cyst_2_Volumn
Lt-Ovary Lt_Ovary_Volumn Lt_Cyst_1_Volumn Lt_Cyst_2_Volumn
Uterus Uterus_Volumn Endom_Thick Fibroid_1_Volumn Fibroid_2_Volumn
Fetal_Biome BPD HC OFD FL AC TAD APAD CxLength
Long_Bones HL UL TL FL Radius Fibula
AFI AFI1 AFI2 AFI3 AFI4
Pelvic
Uterus Uterus_Volumn Endom_Thick Fibroid_1_Volumn Fibroid_2_Volumn
Rt-Ovary Rt_Ovary_Volumn Rt_Cyst_1_Volumn Rt_Cyst_2_Volumn
Lt-Ovary Lt_Ovary_Volumn Lt_Cyst_1_Volumn Lt_Cyst_2_Volumn
Rt_Follicle F1 ....... F6
Lt_Follicle F1 ....... F6
Urology
Rt_Kidney Volumn CORTEX
Lt_Kidney Volumn CORTEX
Bladder Volumn Blad_Wall Pro-void_Volume Rt_Ureter Post-void_Volume Lt_Ureter
Prostate Volumn
Rt_Testicle Volumn
Lt_Testicle Volumn
Cardiac
RV/LV RVWd LVDd RVDd LVPWd RVWs LVDs RVDs LVPWs
LV_Simps. A4C_Dias A4C_Sys A2C_Dias A2C_Sys IVSs IVSd
LA/Ao Ao_Root LA Asc_Ao LVOT_Diam AVA(Trace)
MV Diameter MVA(Trace)
LV_Mass_A/I Epi_Area Endo_Area LV_Length
Qp/Qs LVOT_Diam RVOT_Diam
Small Parts
Rt_Thyroid Volumn Isthmus
Lt_Thyroid Volumn Isthmus
Rt_Testicle Volumn
Lt_Testicle Volumn
Vessel Vessel_Area Stenosis_Area Vessel_Diam Vessel_Diam
Breast Distance
Vascular
Stenosis_D Rt_CCA Lt_CCA Rt_Bulb Lt_Bulb Rt_ICA Lt_ICA
Stenosis_A Rt_CCA Lt_CCA Rt_Bulb Lt_Bulb Rt_ICA Lt_ICA
Intima Rt_Prox_CCA Lt_Prox_CCA Rt_Mid_CCA Lt_Mid_CCA Rt_Dist_CCA Lt_Dist_CCA Rt_Bulb Lt_Bulb Arterial Distance Area Diam_Red Area_Red Diameter
Venous Distance
MSK
Distance
Area
Hip_Angle
Language English Chinese Spanish French Russian
Software & Accessories
Standard Accessories Power Cable Operation Manual Recovery system U Disc
Optional Accessories Built in Li-ion battery Trolley Biopsy guide kit Carrying case
Transducers

Probes	5 Steps Multi-frequency	Image
3.5Mhz abdominal probe	2.0, 3.0, 3.5, 4.0, 5.5Mhz
7.5Mhz linear probe	6.0, 6.5, 7.5, 10.0, 12.0Mhz
6.5Mhz transvaginal probe	5.0, 6.0, 6.5, 7.5, 9.0Mhz

Certificate FSC CE ISO9001 ISO13485

---
