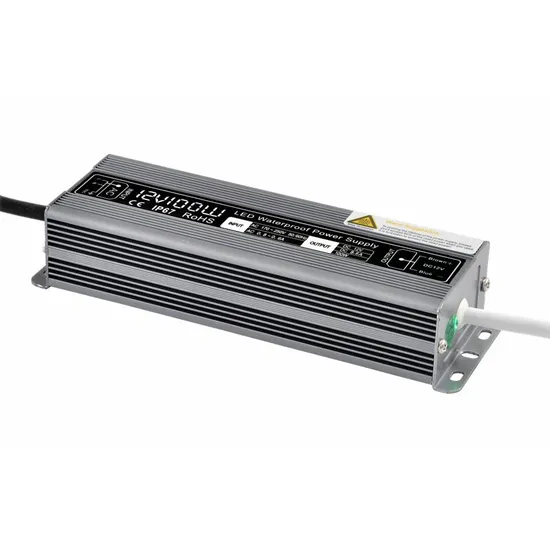

IP67 Aluminum Slim Bathroom Furniture LED Transformer Waterproofed LED Driver 12V / 24V Power Supply for LED Strip Bath Light Mirror Cabinet

US$6.99
10-199 Pieces
US$5.18
200-499 Pieces
US$4.92
500-999 Pieces
US$4.68
1,000+ Pieces

Basic Info.

Model NO.
FDD009
Driving Method
LED Regulator Voltage
Circuit Structure
Electronic Step-down Transformer
Certification
CE, RoHS
Power Supply Mode
Constant Voltage Source
Power Supply Voltage
90-240V
Function
LED Driver for LED Lighting
Size
182*30*20mm
Color
Black
Material
PC (Shell) & Electronics
Transport Package
Box+Carton
Specification
12V or 24V 20W
Origin
China
HS Code
9405409000
Production Capacity
10000 Pieces Per Month

Product Description

AC to DC 12V 24V 20W 30W 60W 100W 150W 200W 250W 300W Waterproof LED Power SupplyTransformer
Model # FDD009
Specification:
FDD009W-20W Size 182*30*20mm Input 90-130V OR 170-250V, output 12V or 24V 20W, 230g, IP67
FDD009W-30W Size 222*30*20mm Input 90-130V OR 170-250V, output 12V or 24V 30W, 250g, IP67
FDD009W-40W Size 222*30*20mm Input 90-130V OR 170-250V, output 12V or 24V 40W, 280g, IP67
FDD009W-50W Size 222*30*20mm Input 90-130V OR 170-250V, output 12V or 24V 50W, 280g, IP67
FDD009W-60W Size 202*35*25mm Input 90-130V OR 170-250V, output 12V or 24V 60W, 530g, IP67
FDD009W-100W Size 178*52*35mm Input 90-130V OR 170-250V, output 12V or 24V 100W, 800g,IP67
FDD009W-100W-S Size 178*62*16.8 Input 90-130V OR 170-250V, output12V or 24V 100W, 520g,IP67
FDD009W-150W Size 198*58*32mm Imput 90-130V OR 170-250V, output 12V or 24V 150W, 660g, IP67
FDD009-P 7.5W Transformer input 90-240V output 12V DC 7.5W With 1m cable, size 59*24*59mm
FDD009-P 18W Transformer input 90-240V output 12V DC 18W With 1m cable, size 75*25*61mm
FDD009-P 24W Transformer input 90-240V output 12V DC 24W With 1m cable, size 88*46*52mm
FDD009-P 36W Transformer input 90-240V output 12V DC 36W With 1m cable, size 84.5*49.5*49.5mm
FDD009 48W Transformer input 90-240V output 12V DC 48W With 1m cable, size 120*53*32mm
FDD009 60W Transformer input 90-240V output 12V DC 60W With 1m cable, size 120*53*32mm
FDD009 72W Transformer input 90-240V output 12V DC 72W With 1m cable, size 132*58*32mm
FDD009 84W Transformer input 90-240V output 12V DC 84W With 1m cable, size 140*60*38mm
FDD009-SS-36W LED power supply
Input AC 85-265V 50/60Hz Output DC 12V Max 36W
Ports 2 switch ports + 6 light ports
Material PC (shell) & Electronics
Dimension 138 x 55 x 18mm
Colors white

More adapter, light accessories for you choose:
Model# Input Output Rated Power IP rate Size mm
FDD009-P-7.5W 110-240V AC 12V DC 7.5W IP20 59*24*59
FDD009-P-18W 110-240V AC 12V DC 18W IP20 75*39*47
FDD009-P-24W 110-240V AC 12V DC 24W IP20 88*46*52
FDD009-P-36W 110-240V AC 12V DC 36W IP20 85*50*50
FDD009-48W 110-240V AC 12V DC 48W IP20 120*53*32
FDD009-60W 110-240V AC 12V DC 60W IP20 120*53*32
FDD009-72W 110-240V AC 12V DC 72W IP20 132*58*32
FDD009-84W 110-240V AC 12V DC 84W IP20 140*60*38
FDD009-96W 110-240V AC 12V DC 96W IP20 140*60*38
Distribution box
plug&cable		 Distribution box to use together with transformer.3, 4, 6 and 10 way
