Conveyor Belt Air Cooling Splice Press Machine

Product Description

Bayrich Air cooled press is using for hot melt PU PVC PVK PE conveyor belt
★Detail: All-in-one, the ultimate solution for both workshop and on-site jobs: comfortable, fast and easy to program.
★Feature :
1.Compact,no need external elements.
2.Air-cooled.fast .10mins splicing time for one cycle belt joint work .
3.2 dwell levels of temperature.
4.Light and easy to handle. Flight case included.
5.Different electrical configurations available.
★Description:
Made of aluminium. Available for 6 different widths of belt: 300, 600, 900, 1200, 1500 and 1800mm. The press includes pneumatic pressure system, heating system and air cooling system, together with a clamping system for the belt. The press is divided into 2 parts (top and bottom); each integrates stainless steel platens with heating elements and temperature probes. Length of the platen: 130mm. Completely automatic process programmed from the built-in controllers (pressure, heating, dwell time and cooling).
The press is supplied with a flight case with 4 multidirectional wheels and a handle.
Controllers
Built in the frame of the press and easy to program. Automatic control of the whole process of joint, once the melting temperature of both platens, the dwell time, the cooling temperature and the pressure have been set. Automatic end-of-cycle buzzer.
Pressure system
The pressure is supplied equally by means of a wide section airbag inside the bottom frame. 2,0 Bar maximum pressure . All the models include compressor, pressure switch .
Heating system
Fast heating of both platens by means of heating elements. Each one is made with an asymmetrical winding to supply an even heat distribution all along the belt. The elements get warmer on the ends to compensate the loss of temperature and avoid heat concentration in the middle. Temperature programable up to 200º C / 392º F.
Cooling System
The cooling system consists of several high-performance fans placed on the top frame. They activate automatically at the end of the dwell temperature process.
Clamping System
The belt is fixed by means of a clamping bar built-in the frame.
Bolts
Easily adjustable to different belt thicknesses. Steel made with safety factor 2 (capable of withstanding twice the maximum load pressure of the press).
★Technical Datasheet

Model	SA300	SA600	SA900	SA1200	SA1500	SA1500H	SA1800H
Effective Length	305mm/12"	610mm/24"	914mm/36"	1219mm/48"	1524mm/60"	1524mm/60"	1829mm/72"
Effective Width	130mm/5.1"	130mm/5.1"	130mm/5.1"	130mm/5.1"	130mm/5.1"	130mm/5.1"	130mm/5.1"
Upper Weight	10KG	16KG	20KG	28.5KG	30KG	45KG	63.3KG
Lower Weight	11KG	13KG	18KG	25.5KG	30KG	53KG	67.5KG
Total Weight	21KG	29KG	38KG	54KG	60KG	98KG	131KG
Overall Height	220mm	225mm	225mm	225mm	225mm	255mm	255mm
Width						250mm	250mm
Length	505mm	805mm	1105mm	1405mm	1705mm	1700mm	2005mm
Max.Pressure	1.5Bar/22Psi	1.5Bar/22Psi	2Bar/28Psi	2Bar/28Psi	2Bar/28Psi	2Bar/28Psi	1Bar/14.5Psi
Max.Temp	200ºC/390ºF
Power	1.2KW	3.2KW	4.5KW	5.8KW	7KW
Press+Case Weight	39KG	52KG	66KG	80KG	95KG	132KG	158KG
G.W.	50KG	72KG	89KG	104KG	115KG	153KG	190KG
Packing Size (mm)	790*430*420	1090*430*420	1390*430*420	1720*450*430	1990*430*520	1990*430*520	2130*450*520

★Machine Detail

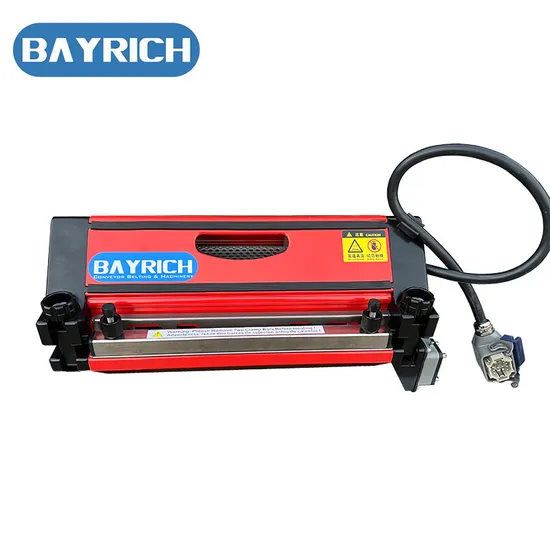

Cooling Fan and Aluminium Frame	Temp. Controller
Power Cable	Power Cable
Power Cable	Heating Area
