Heavy Duty CNC Cw4000 Turning Milling Machine Center

Product Description

Product Description

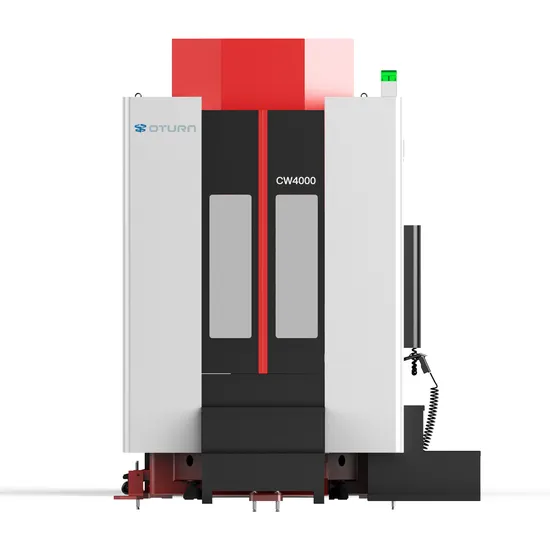

The high-speed and high-performance horizontal machining center CW4000 has the characteristics of high rigidity, high precision and high efficiency machining. The one-piece base and the positive T structure design of the X-axis high and low rails ensure the high rigidity of the machine tool; through the finite element analysis of the whole machine, it is ensured that the machine tool does not vibrate under high-speed motion and provides the best stability for the long-term operation of the whole machine.
By adopting high-end technologies such as high-speed spindle technology, high-speed feed technology, high-speed tool change technology, and high-speed CNC system technology, the processing time is greatly shortened, the processing efficiency is improved, and various production needs are met. The three-axis rapid displacement is 60 M/min, the axial feed acceleration reaches 0.8G, and the high-speed and high-torque electric spindle reduces the acceleration and deceleration time of the spindle. These indicators greatly shorten the non-processing time and improve the processing efficiency.
Adopt Fanuc's latest 0i-MF PLus system, 10.4-inch LCD display, tool information management, processing simulation, intelligent warning display, self-diagnosis and other functions to make the use and maintenance of the machine tool more convenient and fast; the high-speed optical fiber communication method has been greatly improved The data processing ability and control performance of the CNC system, the program storage capacity is increased to 2M, and the Ethernet & editable storage is used to facilitate the fast and efficient transmission of the program and online processing
Product Parameters

Item		Unit	CW4000
Worktable	Worktable (l×W)	mm	400×400
	Number of Worktables		2
	Max.Load of Table	kg	300
	Max.Workpiece Size Of Worktable	mm	0710*510
	Height of Worktable From The Ground	mm	1054
	Min.Division Value	Spend	0.001
Feed	X/Y/ZAxis Rapid Displacement	m/min	60/60/60
	Feed Rate	m/min	1-10
Travel	X/Y/Z Axis Travel	mm	500×450×400
	Distance From Spindle Center to Worktable	mm	130-580
spindle	Distance From Spindle End Face To Worktable Center	mm	125-525
	Spindle's size(installation Dia./Transmission Mode)	mm	170/built-in
	Spindle Cone Hole	mm	BT40
	Max.Spindle Speed	r/min	15000
	spindle motor power	kw	18.5/26
	spindle motor torque		32/65.1
Tools	Tool Magazine Capacity	tools	23
	Max.Tool Diameter/Length	mm	110/250
	Max.Tool Weight	kg	8
Three Axis	X-axis Guide Rail (rail Width /Number of Sliders)	mm ers)	35/2
	Y-axis Guide Rail(rail Width/Number of Sliders)		35/2
	Z-axis Guide Rail (rail Width/Number of Slid		35/2
	X Shaft Screw		2R40×20
	Y Shaft Screw		2R40×20
	7 Shaft Screw		2R36×20
Accuracy	Positioning Accuracy	mm	±0.005/300
	Repeated Positioning Accurac	mm	±0.003/300
Other	Air Demand	kg/cm²
	Gas Flow Rate	L/min
	Machine Weight (comprehensive)	T	6
	Machine size (L×W×H)	mm	1650*5506*2861

Products Configurations
Company Profile
Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
2.lf need ClF Price, please kindly tell us the port of destination.

---
