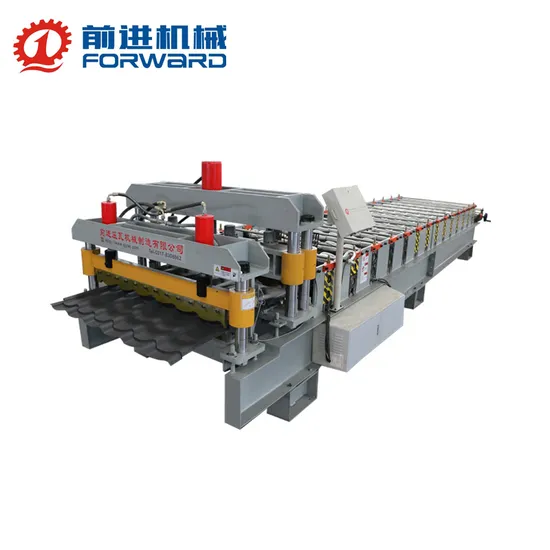

Azerbaijan PPGI Metal Roof Tile Roll Forming Machine

Product Description

Azerbaijan PPGI Metal Roof Tile Roll Forming Machine
Product Description

General Information	Coil Material	PPGI/PPGL/GI/GL
	Coil Thickness	0.3~0.8MM
	Coil Width	1200MM
	Speed	1.5~2M/MIN
	Voltage	As Customer's Request
Roll Forming Unit	Roller Station	14
	Driving Motor	5.5KW
	Shaft Diameter	70mm Solid
	Shaft Material	45# Hard Steel
	Roller Material	45# Hard Steel
	Under Frame	350H-Beam
	Sidewall Thickness	16MM
	Transmission	1 Inch Chain
	Feeding Device	1 Set With Pre-cutter
Pressing & Cutting Unit	Pressing & Cutting Type	Hydraulic Stop TO Press & Cut
	Hydraulic Pump Power	5.5KW
	Cutting Die Material	Cr12Mov
	Hydraulic Oil	46# Abrade Oil
Control Unit	Control Method	PLC
	Length Control	Encoder
	Operation	Touch Screen
	Language	Chinese & English
Auxilliary Device	---	5T Manual Decoiler
	---	Exit Rack
*All parts can be customized as customer's request.

Detailed Photos
Certifications
Packaging & Shipping
Company Profile
FAQ
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point. Good quality is for long-term business cooperation. Q2. Can you provide OEM service for roll forming machine? A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different. Q3. What's your standard trade terms ? A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight. Q4. How about the quality control? A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(******) Certificate. Q5. How about the after-sale service? A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely. Q6. If I am in Beijing,Shanghai or Guangzhou,how to visit your company? A6: 1) Beiing South Statioin to Cangzhou West Station (by fast train 1 hour). 2) Shanghai Hongqiao to Cangzhou West (4.5 hours) 3) Guangzhou Airport to Tianjin ,then Tianjin to Cangzhou West

---
