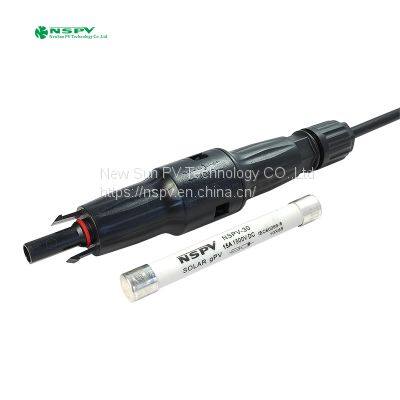

NewSun 4F3-15 Solar Cable Fuse Connector DC 1500V
Product Specifications
Insulation material : PPE/PA
Overvoltage category/Pollution degree : CATIII/2
Rated current(Without fuse) : 30A
Safety degree : II
Rated current(With fuse) : 1A,2A,3.5A,4A,5A,8A,10A,12A,15A.20A.25A.30A
Flame dass : UL94-V0
Rated voltage : 1000VDC
Insertion force/Withdrawal forcee : ≤50N/≥50N
Test voltage : 6kV(50Hz,Imin)
Ambient temperature range : -40℃...+85℃(IEC)
Typical contact resistance : ≤0.25 mΩ
Upper limiting temperature : 110℃(IEC)
Contact material : Copper,Tin plated
Connecting system : Crimp connection
Degree of protection : IP67
Nut cap locking force : 1.5-1.8Nm
Drawing:
>>
