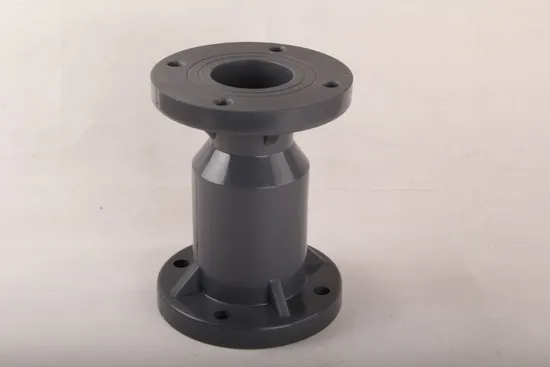

Salvador Industry UPVC Vertical Flange Type Check Valve

Product Description

Salvador Industry UPVC Vertical Flange Type Check Valve
FEATURES
Valve body color: Dark Grey, Light Grey, Light Yellow

Size		1/2"--12"
Standard		DIN, JIS, ANSI
Material		UPVC
End connector		Flange
Working pressure		0.6 Mpa

SPECIFICATIONS

The flange,the thread check valve specification
DN	(mm) Flange type size					(rnm) Screwtop type size			Mqp Working
	D2	D1	L	T	N-*	ZG	L	LI	Pressure
15	95	65	100	14	4-14	1/ 2"	105	15	0.6
20	105	75	120	14	4-14	3/4"	125	17	0.6
25	115	85	140	16	4-14	1"	150	20	0.6
32	135	100	160	17	4-18	1 1/4"	165	23	0.6
40	145	110	165	18	4-18	1 1/2"	170	25	0.6
50	160	125	180	20	4-18	2"	190	28	0.6
65	180	140	220	22	4-18	2 1/2"	210	32	0.6
*80	195	160	250	25	8-18		260	32	0.6
100	215	180	280	25	8-18		290	45	0.6
125	245	210	320	30	8-18				0.5
150	280	240	360	30	8-23				0.4
200	335	295	400	35	8-23				0.4
250	395	350	500	38	12-23				0.4

Socket type check valve specification
DN	Receives inserts thetype size		Mpa
	L	L1	Working Pressure
20	105	15	0.6
25	125	17	0.6
32	150	20	0.6
40	165	23	0.6
50	170	25	0.6
63	190	28	0.6
75	210	32	0.6
90	260	32	0.6
110	290	45	0.6

Other Hot Products
Meet us in Exhibition
FAQ: (Frequently Asked Questions)
1. What is your MOQ?
Our MOQ is usually 5 CTNS.
2. What is your delievery time?
Our delievery is about 25-30days.
3. What is your payment terms?
We accept T/T, 100% L/C, or West Union and so on.
4. Could you provide free samples?
Usually, we offer free samples, customers bear freight cost.
5. Why choose us?
Firstly, comparing with many factories, our prices are more competitive.
Secondly, We 100% test working pressure for ALL our products.
Finally, After- Services will be highly satisfied. Any problems and feedbacks will be responded efficiently.

Company introduction
SWD PLASTIC (Salvador Industrial Co., Ltd) is a leading and professional manufacturer and exporter for UPVC, CPVC, PPH, PVDF pipes, valves and fittings in China. We stick to the principle of " Quality First, Service First, Continuous Improvement and Innovation to Meet the Customers", and the quality management objective of " Zero Defect, Zero Complaints".
SWD Products are widely used in Agricultural Irrigation, Wastewater Treatment, Aquaculture, Pharmaceutical Industry, Electroplating, Papermaking Industry...
Most of our products confirm to ANSI, DIN, BS, JIS & TIS standard and have been already sold to United States, Canada, Mexico, Chile, Colombia, Peru, Russia, Saudi Arabia, UAE, Iran, Iraq, Thailand, Philippines, Indonesia, Malaysia etc. With very good reputation!

---
