Ce Approved 2, 3 L Cylinder Emergency Escape Breathing Device Eebd

Product Description

Ce Approved 2, 3 L Cylinder Emergency Escape Breathing Device EEBD
>>> EEBD Inspection Standard
1. The EEBD are designed and manufactured according to the International Fire-Fighting Safety System Rules which as passed by the MSC.98 (73) Resolution of the International Maritime Organization (IMO) and became a compulsory and obligatory requirement on 1 of July 2002.
2. Standard of full face mask: EN136:1998-respiratory protective devices
>>> Application
The EEBD can provide constant fresh airflow and is used for personal escaping from a dangerous environment full of poisonous harmful air, smoke or lack of oxygen. Used for fighting fire, entering oxygen deficient voids or tanks, or worn by firefighters.

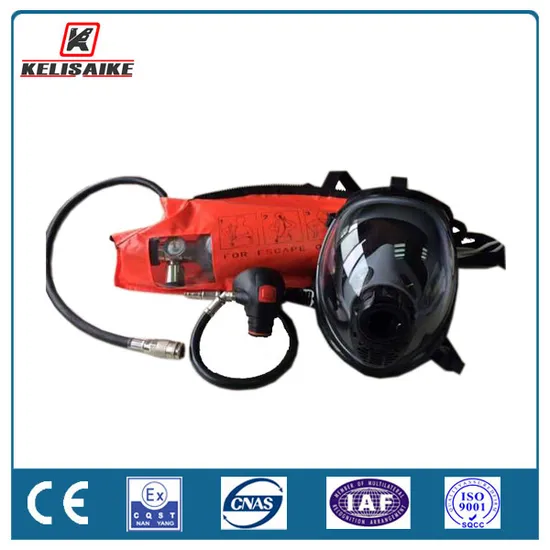

It consists of carbon fibre cylinders, full face mask, air supply valve, gas ducts and polybag, can provide individuals 15 or 20 minutes of constant gas for escape.
>>> Key feature
1. Light and convenient for operation
2. Demand type; can be reused
3. Y-type design; cylinder valve with a gauge; normal pressure indication
4. Prevent accident from occurring during the emergency escape and keep sufficient air supply
5. Carbon fibre air cylinder; working pressure: 30MPa; 2L/3L- air cylinder is optional
6. PG-S pressure Gauge can make the storage volume in the bottle read clearly under a complex and dark environment.
7. It can be carried by shoulders, which can make the hands perform other protection operation for escape.
8. Not affected by dense smoke and the external severe environment.
9. The service time is 20-30 mins, which can make relevant personnel quickly evacuate from the dangerous environment
10. Safe and reliable; it is a kind of important escape unit used in a dangerous environment
>>>Technical Character

Cylinder material	Carbon fibre composites
Content	Compressed air
Hydrostatic pressure	45 MPa
Working pressure	30 MPa
Thread	M18*1.5
Gas cylinder volume	2 L / 3 L
Max flow	300 L/min
Inhalation resistance	< 500 Pa
Exhalation resistance	< 1000 Pa
Alarm pressure	4~6 MPa
Service time	20 minutes for 2L/30 minutes for3L
Cylinder material	34CrMo4
Cylinder inner wall coating	Pickling and phosphating

>>> Description of accessories
1. KL99 Carbon Fiber Composite Cylinder
(1) Carbon fibre cylinder has the advantages of high strength, lightweight, corrosion-resistant and anti-shocking.
(2) The interlayer of the carbon fibre composite cylinder is made of high-intensity aluminium alloy fully wrapped with carbon fibre composite. The glass fibre surface screw is M18*1.5.

No.	Volume(L)		Outside Diameter(mm)			Wall Thickness(mm)		Working pressure(Mpa)			Weight(kg)		Length(mm)
KL99-C1	2		96			M18*1.5		30			1.5		433
KL99-C2	3		114			M18*1.5		30			2.1		446

2. KL99-A01 full mask
(1) Three dimensions spherical visor. The visual field could reach 91% with great optics. The lens has been rigidified and anti-fog processed thus can be without fog on the surface for a long time.
(2) Fit for people's face, comfortable donning and good leak tightness.
(3) Plug-in structure for quick connection with a demand valve.
(4) Leak tight mask is made of high-quality flame-resistant silicon rubber, oronasal cover uses top silicon rubber, soft and high temperature resistant.
(5) Flame resistant reticulated hood and strap are easy to wear.
(6) Adopt high-intensity sound transmission diaphragm.
(7) Oronasal guard suitable for wearers, decrease the inhalation carbon dioxide content.
3. KL99-A05 air supply valve
(1) Demand valve, with small size, can be inserted mask in 360o promptly. Gas supply is above 500L/min.
(2) Streamlined and elegant design, do not obstruct the view
(3) Manuel close valve has small resistance for opening
(4) Small breathing resistance to make respiration comfortable
(5) Easy operation and use
(6) Ensure safe air supply by using a manual air supply button
(7) Outer shell uses flame resistance high-intensity engineering plastics
4. Gas cylinder and cylinder valve
The Y shape design has a safe self-lock device to prevent inadvertent close due to a hard knock or incorrect operation. Unscrew the switch handwheel by rotating in the counterclockwise direction, it is regarded as the open condition and close vice versa. There is safety diaphragm set in cylinder valve, with explosion pressure at (37-45)MPa to prevent the deformation and explosion of the cylinder due to inner high pressure.

---
