Cnjx High Quality Cryogenic Pressure Vessel Customized Double Wall Cryogenic Liquid Gas Storage Tanks

Product Description

Product Description
Cryogenic Storage Tank for LOX/LIN/LAR/LCO2 with ASME/GB Standard
Quick Overview:
Full Volume: 1,000L~100,000LWork Pressure: 0.80MPa/1.60MPa/2.30MPa/3.45MPaFilling Rate:95%Inner Tank Design Temperature: -196Shell Tank Design Temperature: -40ºC~+50ºCInsulation: Vacuum with Multi-layer WrappedStored Medium: LO2,LN2,LArInner Tank Material: SS304 08 or SA240Shell Tank Material: Q345R or SS304 08
Notice: GB standard cryogenic storage tanks are normally in stock, 10 days for fast delivery!!!
Brief introduction:
Cryogenic Storage Tank for Lox/Lin/Lar/Lco2 with ASME/GB Standard can be customized with different specifications and materials according to application scenarios and gas storage categories. It has compact structure, centralized control, safe and reliable, and convenient operation and maintenance. This system offers the most effective solution for centralized gas supply, surpassing traditional steel cylinder gas storage in terms of benefits, such as ease of transportation, energy efficiency, safety, reliability, purity assurance, and versatile compatibility.

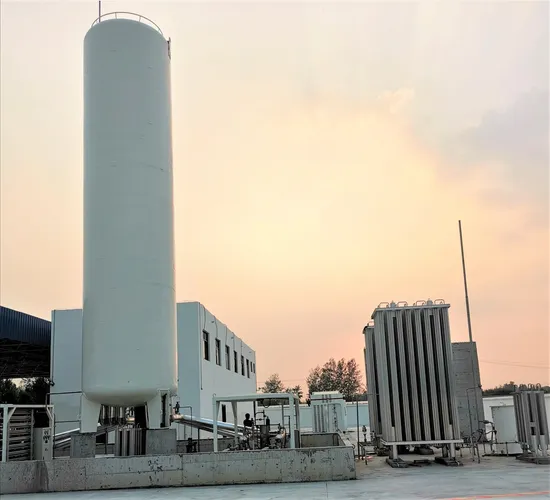

Vetical type and horizontal type cryogenic storage tank for option
Main Features:
Cryogenic Storage Tank for LOX/LIN/LAR/LCO2 with ASME/GB Standard is equipped with liquid inlet pipelines at the top and bottom to realize the unloading and filling of differential pressure and cryogenic liquid pump. A double safety valve (or bursting disc) is set to discharge in case of overpressure to protect the safety of the inner container. Vacuumize and measure the vacuum pipeline, ensure the insulation performance of the interlayer, and the explosion-proof device of the shell can discharge gas in case of leakage of the inner container to avoid serious damage and danger. It has the advantages of large reserves, low evaporation rate, safety and reliability.
Product Parameters

Storage Tank Technical Specifications
Geometric Volume	Work Pressure (MPa)	Liquid Gases Weight(kg)			Tare Weight (kg)	Inner vessel	Outer vessel	Overall Dimensions (mm)
		LO2	LN2	LAR
1	≤0.80	1083	769	1339	825	SS30408	SS30408/Q345R	2400*1413*1301
	≤1.60				825
	≤2.30				825
	≤3.45				940
2	≤0.80	2166	1539	1679	1135	SS30408	SS30408/Q345R	2851*1786*1750
	≤1.60				1135
	≤2.30				1248
	≤3.45				1433
3	≤0.80	3237	2300	4004	1590	SS30408	SS30408/Q345R	3592*1785*1750
	≤1.60				1590
	≤2.30				1850
	≤3.45				2025
5	≤0.80	5118	3636	6330	2334	SS30408	SS30408/Q345R	3690*1870*2152
	≤1.60				2334
	≤2.30				2425
	≤3.45				2867
8	≤0.80	8664	6156	10716	3755	SS30408	SS30408/Q345R	5130*1950*2196
	≤1.60				3848
	≤2.30				4187
	≤3.45				4867
10	≤0.80	10818	7686	13380	4012	SS30408	SS30408/Q345R	5800*1950*2196
	≤1.60				4112
	≤2.30				4527
	≤3.45				5360
15	≤0.80	16245	11542	19978	6060	SS30408	SS30408/Q345R	8320*2196*2227
	≤1.60				6451
	≤2.30				7055
	≤3.45				8267
20	≤0.80	21181	15050	26197	7441	SS30408	SS30408/Q345R	10320*2196*2227
	≤1.60				7921
	≤2.30				8696
	≤3.45				10251
25	≤0.80	27075	19237	33487	11940	SS30408	SS30408/Q345R	11675*2501*2541
	≤1.60				13340
	≤2.30				14275
	≤3.45				16150
30	≤0.80	32490	23085	40185	10395	SS30408	SS30408/Q345R	11400*2675*2753
	≤1.60				11920
	≤2.30				12940
40	≤0.80	43320	30780	53580	13578	SS30408	SS30408/Q345R	14560*2675*2749
	≤1.59				15637
50	≤0.80	54150	38475	66975	14221	SS30408	SS30408/Q345R	11413*3359*3450
	≤1.60				16860
60	≤0.80	64980	46170	80370	16322	SS30408	SS30408/Q345R	13397*3355*3230
	≤1.59				19237
80	≤0.80	87107	61892	107738	26218	SS30408	SS30408/Q345R	13750*3673*3750
	≤1.59				29903
100	≤0.80	108300	76950	133950	31043	SS30408	SS30408/Q345R	16483*3673*3750
	≤1.59				35577
	≤2.10
	≤3.30
Note: The above technical parameters may be changed without prior notice due to modification and development. If there is any change, please refer to the confirmed drawing.

Detailed Photos
We pay more attention to each detail for high quality product.
Production Process
Strict quality control for longer service life.
Packaging & Shipping
Cryogenic storage tank will be packaged by waterproof plastic woven clothes, and loaded into container or by bulk ship.

Company Profile
FAQ
1. Are you a manufacturer or a trading company?
Answer: We are Chinese professional manufacturer for cryogenic liquid gas storage tanks over 46 years.
2. Is there dicount if with large qty.?
Answer: Sure, we will provide you best competitive price as per your working needs, and big dicount with more qty.
3. What's your main product?
Answers: We have cryogenic storage tanks for liquid O2, liquid Ar2, liquid N2, and Liquid CO2, both vertical type and horizontal type.
Also we have smaller type liquid nitrogen containers with various volumes from 2L to 100L.
4. Can I visit your company?
Answer: Yes, of course, you are welcome to visit our company for face to face meeting.
5. How shall I contact you for price?
Answer: Please send us inquiry.

---
