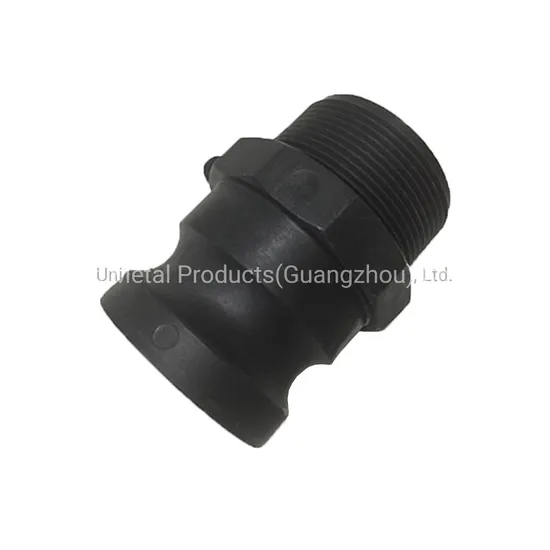

Type F Polypropylene Compression Fitting Male Adapter with Male Thread Camlock Coupling

Product Description

Type F Polypropylene Compression Fitting Male Adapter with Male Thread Camlock Coupling
Polypropylene cam and groove Coupling are manufactured according to standard A-A-59326(original standard Mil-C-27487, size from 1/2″ to 4″. Black Polypropylene Camlock fitting s are made from polypropylene reinforced with 25%-30%acid-resistant fibreglass.It has good chemical resistance, acid and alkali resistance, oxidation resistance. Through suction / discharge hoses,which works in a pipe system connected to a pumps or IBC or storage tank or requiring frequent disconnection operations
Camlock fittings provides simple and reliable way to connect and disconnect the hoses. These camlock fittings can be used together by connecting PVC pipes, rubber hoses, etc., which can transport a variety of fluid media such as gasoline, heavy oil, kerosene, water, mud, salt water, acid and alkali etc. It has the advantage of fast connection, flexible disassemble.
Polypropylene Camlock Fitting Type F Male Adapter drawing and measurement.
Cam and groove couplings description:
Material of the body: Polypropylene
Arm: Stainless Steel
The thread of camlock fittings are BSP, BSPT, NPT
SIZE:1/2 " to 4 "
Working pressure: 50-100 Psi( depending on size and temperature)
Manufacture method: Injection molding
The use and connection way of cam and groove couplings: Type F camlock can be used with B,C,D,DC (Dust Cap). To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
Brass camlock fittings operating pressure

Our Advantage
We are experienced as we have been in this industry as a manufacturer for more than 10 years. Both of quality and service are highly guaranteed. Absolutely prompt delivery. We can produce according to specific drawings from customers. Welcome OEM/ODM project. Strict control on quality. High efficient and well trained sale service team. ISO9001, CE and SGS certified.
FAQ
1.Q: Are you a producer or trading company?
A: We are an experienced manufacturer. We own production line and kinds of machines.

2. Can you make our specific logo on the part?
Yes please provide me your logo and we will make your logo on the part.
3. Can you manufacture products according to my drawings?
Yes we can manufacturer according to client's drawings if drawings or samples are available. We are experienced enough to make new tools.
4. Q: Can I get some samples?
A: We are honored to offer you our samples. Normally it is for free like 3-5 pcs. It is charged if the samples are more than 5 pcs. Clients bear the freight cost.
5. Q: How many days do you need to finish an order?
A: Normally it takes about 30 days to finish the order. It takes more time around peak season, or if the order involves many kinds of different products.
6. what kind of rubber washer do you apply to camlock couplings?
Normally we use NBR gasket.
