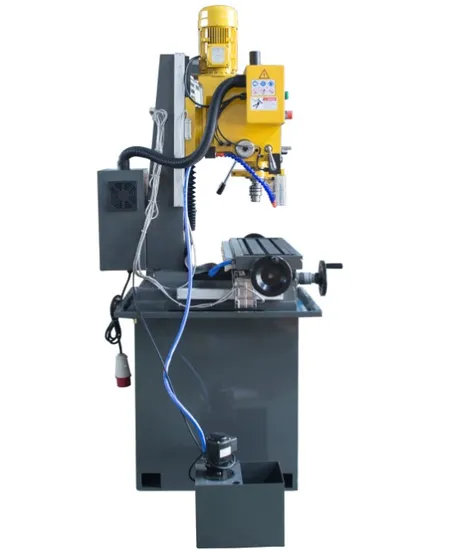

ZAY7045V Variable Speed Milling machine with CE Standard

US$1,200.00-1,700.00 1 Set (MOQ)

Basic Info.

Model NO.

ZAY7045V

Type

Worktable Milling Machine

Object

Tool

Structure

Desktop

Milling Cutter Type

Vertical Milling Cutter

Milling Cutter Structure

Integral

Controlling Mode

Artificial

Automatic Grade

Manual

Precision

Normal Precision

Certification

GS, CE, ISO 9001

Condition

New

Table Size

800X240mm

Drilling Capacity

45mm

Max Face Mill Capacity

800mm

Spindle Travel

130mm

Packing Size

770*880*1160mm

Transport Package

Standard Plywood Package

Specification

Trademark

WMT

Origin

Anhui

HS Code

84592900

Production Capacity

50sets/ Month

Product Description

Feature
Variable speed;Milling,drilling,tapping,boring and reaming functions;Head seivels+-90°vertically;Micro feed precision;Adjustable gibs on table precision;Strong rigidity, powerful cutting and precise positioning;
Variable speed type.
Main specification
Gear head and square column

Model	ZAY7032V	ZAY7040V	ZAY7045V
Max drilling capacity	32mm	40mm	45mm
Max Face mill capacity	Φ63mm	Φ80mm	Φ80mm
Max End mill capacity	Φ20mm	Φ32mm	Φ32mm
Max distance from spindle nose to table	400mm		450mm
Min distance from spindle axis to column	260mm
Spindle travel	130mm
Spindle taper	MT3 , MT4 or R8
Range of spindle speed	100-530rpm 530-2600rpm
Swivel angle of headstock (perpendicular)	±90°
Table size	800×240mm
Forward and backward travel of table	175mm
Left and right travel of table	500mm
Motor Power	1.1KW/1.1KW/1.5KW
Net/Gross weight	300kgs/ 350kgs
Packing size	770×880×1160mm
Loading amount/20" container	36pcs
