Product Details
Product Description
Product Description
Fixed Gas Detector Specifications
Measuring gas
| Combustible gas, toxic gas
|
Sample method
| Diffuse naturally
|
Power
| DC24V+6V ≤3.6W
|
Response time
| LEL: T90≤15s
Toxic gas:T90≤30s
|
Electrical output
| 4-20mA. Hart,RS485-RTU
|
Relays
| For 1st alarm, 2nd alarm, Fault :SPST contacts rated 3A 30Vdcor 3A 250Vac
|
Operation by
| Magnetic bar orlR remote control
|
State indication
| Yellow--Fault
Red--Alarm
Green--Power
|
Operating temperature
| LEL:-40~70°C
Toxic:-20~50°C
|
Humidity
| ≤95%RH(no condensation)
|
Ambient pressure
| 86KPa~106KPa
|
Ex grade
| Ex d IIC T6 Gb / Ex tD A21 IP67 T80℃
|
Ingress protection
| IP67
|
Enclosure material
| Stainless steel
|
Cable entry
| NPT3/4
|
Dimensions
| 130mm×209mm×116mm
|
Weight
| About 5.5kg
|
Fixed Gas Detector Key Features
High measurement accuracy, stable performance and long service life
4-20mA analog signal output, RS485-RTU digital upload
HART output, support Hart handheld communicator for settings
3 relay outputs for 1st alarm, 2nd alarm and fault
High-performance LCD screen display
Non-contact operation by magnetic bar / infrared remote control
Smart sensor module, free of calibration, easy to maintain
Bluetooth communication
Remote upgrade function (optional)
Fixed Gas Detector Description

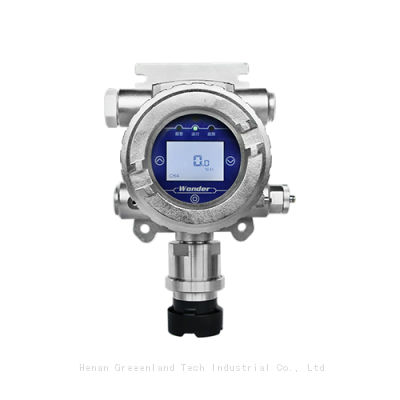

GTQ-WD6200 fixed gas detector is designed for industrial use. By adopting high-performance gas sensor and MCU technology, combined with sophisticated SMT manufacturing process, this detector has good repeatability, high accuracy and long lifespan.
The detector is widely used in oil refineries and chemical plants in the petroleum and petrochemical industries, as well as industries where flammable gases may cause explosions such as metallurgy, electric power, gas, catering, and aquaculture.
>>
