Basic Info.
Material Processed
Plastic Bottle
Computerized
Computerized
Certification
ISO9001:2008, CE
Voltage
220V 380V 400V 415V 440V(Customized)
Heating Way
Electric Heating/ Steam Heating
Keywords
Pet Bottle Hot Washing Machine
Washer Type
Cooling Washer+Hot Washer
Contactor
Siemens Contactor
Temperature Controller
Rkc/Omron
Motor Brand
Siemens Beide
Name
Plastic Film Woven Bags Washing Crushing Productio
Transport Package
Wooden Case Covered by Plastic Film
Specification
25mx2.5mx2.2m
Trademark
Camel Machinery
Origin
Zhangjiagang Jiangsu China
Production Capacity
100PCS/Year
Packaging & Delivery
Package Size
300.00cm * 150.00cm * 200.00cm
Package Gross Weight
6000.000kg
Product Description

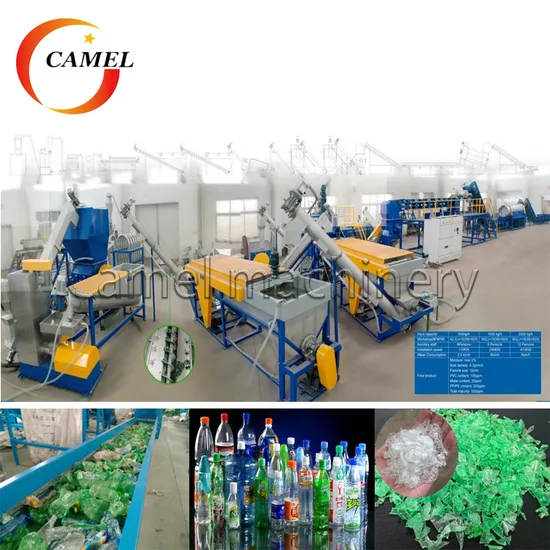

Plastic PET Bottle Flake Recycling Washing Line
Product Description
1. This line is mainly used for recycling the waste PET bottle, PET container etc.
2. To separate PET bottles to flakes from label, cap, oil, garbage.
3. This line is composed of separator, crusher, cold & hot washing system, dewatering, drying, packing system, etc.
4. Easy to operate, Full automatic.
5. Production capacity: 300KG/H, 500KG/H, 1000KG/H, 1500KG/H, 2000KG/H
Main Advantage :
1. Automotive line for recycling the PET bottles and other waste plastic profile, except the film.
2. The final product is the cleaning flakes, if you want the final product is pellets, we should equip the granulator line again.
Process flow:
Belt conveyer → Rolling separator →Manual pick table → Metal separator → Belt conveyer → Crusher → Label Separator → Hot washer 1 → Friction washing machine → Hot washer 2 → High-speed friction washing machine → Rinsing tank → Spray washing→ Dewatering machine → Blower dryness system → Storage hopper → Finished product packing Features :
Capacity: 300-2000kg per hour
Moisture of PET Flakes: Less Than 1.5%
Cap &Label separate with the PET bottle flakes automatically
Bottle Types: PET Bottle, Plastic Bucket, Water Bottle, Coke Bottle
Application: PET Strap, PET Yarn Fiber, PET Sheet
| Machine capacity(Kg/h) | 300kg/h | 500kg/h | 800kg/h | 1000kg/h | 1500kg/h | 2000kg/h |
| Balers Opener | / | optional | optional | Yes | Yes | Yes |
| Label Remover | optional | optional | optional | Yes | Yes | Yes |
| Sorting Table | optional | optional | optional | Yes | Yes | Yes |
| Metal Detector | optional | optional | optional | optional | optional | optional |
| Belt Conveyor | Yes | Yes | Yes | Yes | Yes | Yes |
| Crusher | Yes | Yes | Yes | Yes | Yes | Yes |
| Screw Feeder | Yes | Yes | Yes | Yes | Yes | Yes |
| Friction Washer | Yes | Yes | Yes | Yes | Yes | Yes |
| Floating Washer Tank | Yes | Yes | Yes | Yes | Yes | Yes |
| Hot Washer | optional | Yes | Yes | Yes | Yes | Yes |
| Dewatering Machine | Yes | Yes | Yes | Yes | Yes | Yes |
| Air Dryer | Yes | Yes | Yes | Yes | Yes | Yes |
| Silo | Yes | Yes | Yes | Yes | Yes | Yes |
