Commercial Solar Battery Energy Storage Container 200kwh 215kwh 500kwh 1mwh 2mwh Bess LiFePO4 Batteries 20FT 40FT Container Energy Storage System Price

Product Description

Product DescriptionFeatures of HiTek Energy Storage Container Energy Storage System
1. Working Mode: Ongrid mode (Zero Export,Load First,Battery First,Economy Mode,Peak Shaving); Offgrid Mode;Generator Connection(Optional).
2. Features of BMS: Battery status monitoring ( Record & Storage, Operation Control,Insulation Detection,Dynamic Balancing Management,Protection Alarms,Communication)
3. Features of PCS: Wide Range of DC Input Voltage,Indoor/Outdoor Installation, Short Conversion Time Offull Power from Chagre to Discharge etc.4. Fire Protection System
5. Air Condition System
System Configuration

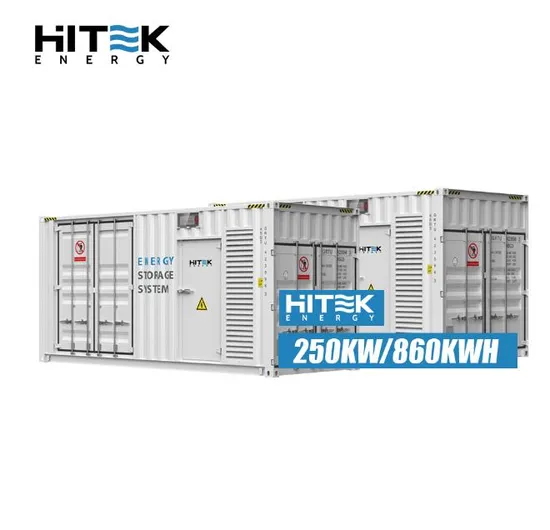

HiTek 20FT ESS Lithium Energy Storage Container Energy Storage System
Item	Description	Quanty(pcs)	Remarks
PV Solar Panel	HT560M-72H	480	12 pieces/string;A total of 40 strings; A total of 268.8kWp
Battery 860.16KWH (688.12KWH@80%DOD)Backup	Combiner Box 1500V-1500A	1	For combination of multiple battery racks
	280Ah Lithium Battery Module	60	Battery With BMU module 51.2V 280AH Capacity 14.3kWh
	Controller1500V 300A	4	High Voltage Controller Box
PV-Combiner Box	8 Inputs 1 Output	3	For combination of multiple PV module strings
PBD250		1	250kW solar charge controller
PCS250		1	250kW battery inverter
Bypass 250		1	Switch between on-grid and off-grid
EnerLog		1	Monitoring datalogger
20FT Container		1	For outdoor installation,IP54,including lighting, fire-resitance system,battery rack,air conditioner

This product is not a specification, need to be configured according to your own needs, if necessary, welcome to contact our salesman to customize your exclusive solution.
Complete Technical Support
Product Parameters HiTek PERC Mono Solar Panel
Model:HT560M-72
Peak Power Watts: 560Wp
Open Circuit voltage (Voc/v):49.84v
Short Circuit Current(Isc/A):14.14A
Voltage at Maximum Power (Vmp/V):41.08v
Current at Maximum Power(Imp/A):13.64A
Dimensions:2279*1134*35mm
Weight:28±3%kgPCS 100-1000KW
Bidirectional battery inverter 500KW, can be used alone or with solar charger and other accessories for different application scenario. Paralleling multiple units, Flexible Configuration, Programmable working mode, Support remote control of DG, Touchscreen LCD.
PBD 250KW
1000V level DC to DC solar charge controller, used together with ATESS PCS and Bypass for large scale solar projects.
-Multiple units parallelable
-Up tp 5 MPPT
-Modular design
-Transformerless design
Bypass 100-1000KW
Bypass cabinet is designed to be used together with bidirectional battery inverter and PV inverter to realize seamless transfer between on and off grid mode automatically.Storage Battery Bank
The energy storage standard module consists of 60 single cells, each unit power is 14.3kWh, the nominal voltage is 51.2V, totally 686kWh@80% DOD.ESS Lithium Battery Container
Our containerised energy storage system (BESS) is the perfect solution for large-scale energy storage projects. The energy storage containers can be used in the integration of various storage technologies and for different purposes.
Global Projects Company Profile HITEK ENERGY gets founded in 2018. As superior photovoltaic manufacturer, HITEK ENERGY's dedicated to providing sustainable and renewable energy solutions to strengthen homes, businesses and factories.
We provide tailored solar energy solutions for backup, residential, and commercial needs, catering to your unique power requirements.
At HITEK ENERGY, your satisfaction is our top priority. We use ONLY Reliable Approved Equipment.
Let's work together for a better, brighter and greener future.Our Advantages
