Basic Info.
Model NO.
Howo concrete mixer
Machining Process
Hydraulic
Vibrating Amplitude
0.9mm
Certification
ISO9001: 2000
Specification
8800x2550x3800mm
Product Description

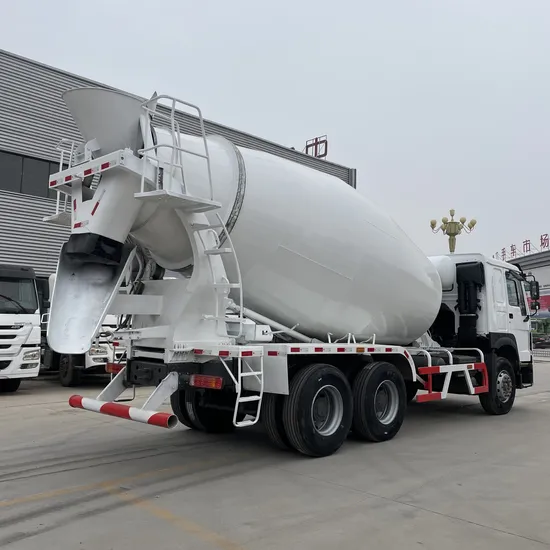

Detailed Pictures for SINOTRUK 10CBM 12CBM HOWO 10 Wheeler Concrete Mixer Truck
brand
| Sinotruk Howo
|
Cabin
| Driving type 6x4, LHD
|
|
HW76 single bed
|
Vehicle Main Dimensions
| Overall dimensions (L x W x H)mm
| 10245x2496x3450
|
Wheel base (mm)
| 3600+1350
|
Wheel track (front/rear) (mm)
| 2022/2022
|
Approach/Departure angle(°)
| 16/24
|
Max. driving speed(km/h)
| 90
|
Engine
| Type
| 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
|
Model
| WD615.47
|
Horse Power(HP)
| 371
|
Emission standard
| Euro II
|
Gearbox
| 10 forwards & 2 reverse
|
Steering
| Left hand drive
|
Tire
| 12R22.5 tubeless tires with one spare
|
Mixer Drum
| Mixer Capacity
| 16 cubic meters
|
Drum thickness
| 6mm
|
Blade thickness
| 4mm
|
Tanker Material:
| 16MnQ345 Carbon Steel
|
Filling Rate(%)
| 59
|
Input Speed (m3/min)
| ≥2.8
|
Output Speed (m3/min)
| ≥1.2
|
Surplus Ratio
| ≤0.5
|
| Tanker Rotate Speed(rpm)
| 0~17
|
| Hydraulic Pump
| Italy Brand: PMP
|
Drum Drive System
| Hydraulic Motor
| Italy Brand: PMP
|
| Speed Reducer
| Germany Brand
|
| Radiator
| KAITONG
|
| Water Tank Volume(L)
| 400
|
We supply all kinds of used tipper truck,, tractor truck, concrete mixer truck from year 2000 to now, all in good condition and low price! for more photos and details please contact us.
>>
