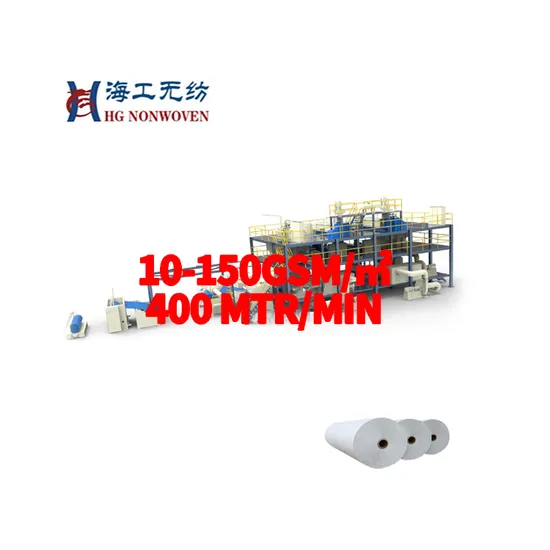

2400mm OEM Service Ss Fibers Making Equipment Used Spunbond Machine

Product Description

Product Description
PP spunbond nonwoven fabric and PP meltblown nonwoven fabric are well-known nonwoven fabric in the world.Both of nonwoven fabric are made by PP(Polypropylene).
PP spunbond combines fiber spinning with web formation by placing the bonding device in line with spinning.Fibers are former as the molten polymer exits the spinnerets and is quenched by cooling air and deposition on a moving conveyor belt.It is possible to single layer to multi layers nonwove fabric such as S/SS/SSS/SMS/SSMS/SMMS/SSMMS etc...It means one layer fiber splay on another layer again and then thermal bond together.

Process Flow

PP Raw Material→melting and extruding→filtering→metering→spinning→quenching→air-suction→ filament web forming→calendering→winding and slitting→packing→end product.
Product Parameters

Model	Effective width	Daily capacity	Machine speed	Spinning system	GSM Range	Machine dimension Length*Width*Height
HG-1600M	1600MM	2000Kg	100M/Min	Only meltblown	10-200grams/m2	15*8*8 meter
HG-2400M	2400MM	3000Kg				15*10*8 meter
HG-3200M	3200MM	4000Kg				15*12*8 meter
HG-1600S	1600MM	5000Kg	200M/Min	Spunbond(S)	10-200grams/m2	20*8*11 meter
HG-2400S	2400MM	7000Kg				20*11*11meter
HG-3200S	3200MM	10000Kg				20*15*11meter
HG-1600SS	1600MM	9000Kg	350M/Min	Spunbond(SS)	8-150grams/m2	35*10*11meter
HG-2400SS	2400MM	13000Kg				35*12*11meter
HG-3200SS	3200MM	16000Kg				35*15*11meter
HG-1600SSS	1600MM	12000Kg	400M/Min	Spunbond(SSS)	8-100grams/m2	40*10*11meter
HG-2400SSS	2400MM	16000Kg				40*12*11meter
HG-3200SSS	3200MM	23000Kg				40*15*11meter
HG-1600SMS	1600MM	10000Kg	400M/Min	Spunbond+Meltblown+Spunbond	8-80grams/m2	40*15*11meter
HG-2400SMS	2400MM	14000Kg				40*18*11meter
HG-3200SMS	3200MM	18000Kg				40*25*11meter
HG-1600SMMS	1600MM	12000Kg	500M/Min	Spunbond+Meltblown*2+Spunbond	8-80grams/m2	45*15*11meter
HG-2400SMMS	2400MM	17000Kg				45*18*11meter
HG-3200SMMS	3200MM	23000Kg				45*25*11meter

Company Profile
Pujaing HG Nonwoven Machinery is well-known nonwoven fabric making machine manufacturer,which specializes in manufacturing PP spunbond and meltblown nonwoven fabric making machines with complete turnkey engineering service.Our nonwoven fabric machine focus on producing high performance eco-friendly and biodegradable spunbonded nonwoven fabrics.
Supply S/SS/SSS/SMS/SMMS/SSMMS spunbond nonwoven fabric machine Support nonwoven market analysis and feasibility report Provide One-Stop project engineering solution from A to Z
Application Area
Selecting the Ideal Non woven Fabric Machine Line for the Right Application
Please choose below sheet to select which kind of nonwoven business you want to start. With our deep expertise across diverse sectors like packaging, medical, hygiene, and agriculture, we will guide and help you in technical support to choose one most suitable line to start your business easily. Our solutions are crafted to save you time, reduce costs, and overcome operational challenges with efficiency.
Packaging
Nonwoven fabric used in packaging industry is the most popular like shopping bag, flower wrappers, laundry bag, and garment bag, and etc.
Medical
Spunbond and meltblown nonwoven fabric will be the best choice in usage of medical field like face mask, surgical gowns, disposable mattress and etc.
Hygiene
Spunbond nonwoven fabric used in hygiene will be required softer and breathable in hygiene filed like baby or adult diaper and feminine products etc.
Agriculture
Nonwoven fabric roll used in agriculture field like crop cover, plant protect, and seed blankets, usually require the function of anti-UV to protcet plant.
Our Advantages
1. High standard nonwoven machine specification.
2. Free inspection invitation before delivery.
3. DUNS&BRADSTREET regiested company;your order safe and your money is safe.
4. Free door to door engineering service in 24 month.
5. CE Certification and ISO:9001 management system.
FAQ
Is spunbond plastic?
"Spunbond is made from plastic, which takes hundreds of years to decompose naturally in the environment. If its use is not reused, it is the same as a disposable plastic bag," Asep explained. DLH DKI Jakarta has provided Spunboxes or storage areas for reusable spun-bond bags in various markets in Jakarta.
What is spun bond?
Spun bonding is one of the most popular methods of producing polymer-laid nonwovens. This process is based on the melt spinning technique. The melt is forced by spin pumps through a spinneret having a large number of holes.
Can you machine produce spun lace nonwoven fabric?
We are PP spun bond nonwoven machinery manufacturer which only produces spun bond and melt blown nonwoven fabric, but not spun lace nonwoven fabric.
The production technology is totally different. The spunlace nonwoven fabric is a product of the process of entangling a web of loose fibres through multiple rows of jets of water at high pressure which pierce the material and tangled the fibres.
What is the difference between spunbond nonwoven fabric and spunlace nonwoven fabric?
Spunbond fabrics are strong and durable, making them ideal for applications that require strength and durability. However, they are not as soft or absorbent as spunlace fabrics. Spunlace fabrics are soft and absorbent, making them ideal for applications that require softness and absorbency.
What difference between PP nonwoven fabric and PET nonwoven fabric?
The core different is the raw material, PP nonwoven fabric is polypropylene, and PET nonwoven fabric is polyester.
These two nonwoven fabric is produced by different machine making lines. PET nonwoven fabric making line is much expensive than PP nonwoven fabric making line.
What does 20 GSM mean?
GSM means the gram per square metre (g/m2) of non woven fabric, so 20 gsm means 20g per squre metre.
You will need to know different gsm when you into different industry, like if you do shopping bag, the popular gsm will be 50-80gsm; however if you do medical use, 30-50 gsm will be better choice.
How to choose one suitable nonwoven fabric machine lines?
First please consider which business do you want to do? If you want do nonwoven fabric bag, then single beam nonwoven machine line will be your first choice.
Second to do market research to find the right size line, which size of fabric roll is most popular and acceptable in your local market.
After set a general direction in business, consider the plant dimension as well as the budget.
Anyway, HG nonwoven will always be your side to give your most professional suggestions to help you make the right choice.
How about installation, commissioning and personal training?
We provide turn-key service from A-Z. We will send engineer to your factory and we will give training service after installation to help your engineer run this machine.
The actual installation time takes 40-45 days, total include mechanical work/Electrical work/Training work.
For training time is by mutual discussion, if you need longer time we will also give support on it. The service is all free, but the expenses of food and accommodation need to be paid by buyers.

---
