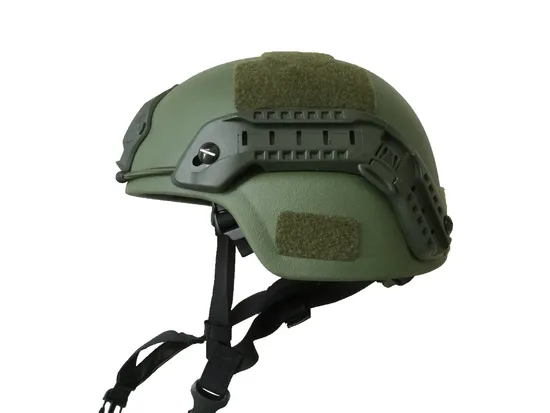

Nij Iiia Mich Aramid Combat Helmet

Product Description

Product Description
PEUD

Soft UD Sheet
Style	Areal Density (g/m²)	Width (m)	Ballistic Performance
WB-674M	160±6	1.2-1.6m	NIJ IIIA 9mm	25 layers	4.00 kg/m²
			NIJ IIIA .44	34 layers	5.44 kg/m²
WB-672S	120±5		NIJ IIIA 9mm	36 layers	4.32 kg/m²
			NIJ IIIA .44	45 layers	5.40 kg/m²
WB-674L	160±6		NIJ IIIA 9mm	22 layers	3.52 kg/m²
			NIJ IIIA .44	30 layers	4.80 kg/m²
WB-674T	165±6		NIJ IIIA 9mm	23 layers	3.80 kg/m²
			NIJ IIIA .44	31 layers	5.12 kg/m²
WB-876	135±8		NIJ IIIA 9mm	23 layers	3.11 kg/m²
			NIJ IIIA .44	29 layers	3.92 kg/m²

Hard UD Sheet
Style	Thickness (mm)	Areal Density (g/m²)	Width (m)	Application	Certificate/Testing Report
HA-792	0.16±0.12	125±8	1.2-1.6m	Hard plate/Helmet	NIJ 0101.06 Certificate
HA-794	0.30±0.02	255±10			NIJ 0101.06 Certificate
HA-894	0.30±0.02	255±10			2020 Chesapeake TestingReport available
HA-994	0.30±0.02	130±10

Aramid UD Sheet
Style	Areal Density (g/m²)	Thickness (mm)	Width(m)	Performance
FT-532	215±8	0.18± 0.02	1.2-1.6m	NIJ IIIA 9mm / 26 layers NIJ IIIA .44 / 30 layers
FT-534	235± 8	0.20± 0.02		NIJ IIIA 9mm / 21 layers NIJ IIIA .44 / 25 layers

Bulletproof plate

Hard Plate (E-Type, Single Curve)
Style	Size(mm)	Protection Level	Areal Density(kg/m²)	Weight(kg)
ZC131	250x300	NIJ IIIA	6±0.02	0.45±0.05
ZC133	250x300	NIJ III	16±0.02	1.25±0.05
ZC132	250x300	AK47	18±0.02	1.30±0.05
ZC143	250x300	SS109	23±0.02	1.72±0.05

Composite Plate (E-Type, Single Curve)
Style	Material	Size(mm)	Protection Level	Weight(kg)
ZF133AZ	Al2O3+PE	250x300	NIJ III ICW	2.17±0.05
ZF133A	Al2O3+PE	250x300	NIJ III+	2.25±0.05
ZF143A	Al2O3+PE	250x300	NIJ IV Stand Alone	2.85±0.05
ZF135Z	SiC+PE	250x300	NIJ III ICW	1.60±0.05
ZF133S	SiC+PE	250x300	NIJ III+	1.85±0.05
ZF143S	SiC+PE	250x300	NIJ IV Stand Alone	2.50±0.05
ZF143SSC	SiC+PE	250x300	NIJ IV Stand Alone	2.56±0.05

Double Curve Plate
Style	Material	Size(mm)	Protection Level	Weight(kg)	Ceramic Type
ZF143SMC	SiC+PE	250x300	NIJ IV Stand Alone	2.70±0.05	Monolithic
ZFZ143MCI	SiC+PE	250x300	NIJ IV ICW	2.40±0.05	Monolithic
ZFZ143BMC	B4C+PE	250x300	NIJ IV Stand Alone	2.60±0.05	Monolithic

Bulletproof Helmets

PASGT	Style	Protection Area	Circumference		Weight(g)
			Normal Helmet	Boltless Helmet	Normal Helmet	Boltless Helmet
	M	0.11	54-58	N/A	1300	N/A
	M(PE)	0.118	54-58	N/A	1350	N/A
	L	0.12	57-60	57-58	1450	1500
	L(PE)	0.125	58-63	N/A	1400	N/A
	XL	0.14	60-64	N/A	1500	N/A

MICH	Style	Protection area	Protection level	Circumference of Normal helmet	Weight of Normal helmet(g)
	S	0.10	NIJ IIIA	52-56	1300
	M	0.11		54-57	1320
	L	0.12		57-59	1400
	XL	0.13		59-63	1500

FAST	Style	Protection area	Protection level	Circumference of Normal helmet	Weight of Normal helmet(g)
	S	0.10	NIJ IIIA	52-56	1300
	M	0.11		54-57	1320
	L	0.12		57-59	1400
	XL	0.13		59-63	1500

Company Profile
Beijing Tongyizhong New Material Technology Corporation (BJTYZ previously as Beijing Tongyizhong Specialty Fiber Technology & Development Co., Ltd.) is a National High-tech Enterprise specialized in R&D, production and sales of HMPE fiber and its composites. BJTYZ which is subordinated to State Development Investment Corporation was established in 1999 with a registered capital of 168.5 million RMB. Through 20 years' fast development, BJTYZ has become a world-famous high performance fiber supplier that employs over 700 staff and covers plant area of 80000 square meters.
BJTYZ, one of the first domestic enterprises doing industrial technology research on HMPE fiber in China, launched the research since 1994, and has become one of the three companies took the lead in realizing the industrialization of Gel Spinning of HMPE fiber. As a pioneering enterprise in HMPE fiber, with 20 years' development, BJTYZ has its own complete intellectual property rights for key technologies. They have filed 50 patent applications, among which 35 inventive patents have been authorized, including 1 European patent and 1 Korean patent. These inventive patents cover all the technological areas of HMPE fiber and its composites.
BJTYZ has already built up the research & development center which has an innovation team of 68 technicians, including nearly 30 postgraduates. Their developmental achievement has won the Second Prize for National Science and Technology Advance in 2009, also their inventive patent has achieved the 11th China Patent Award of Excellence in 2009. BJTYZ has formed strict production management and inspection & test system, and has got both ISO 9001-2015 Quality Management System Certificate and GJB9001C-2017 National Military Quality Management System Certificate. With good quality, stable performance and reasonable price, TYZ HMPE fibers and composites are widely recognized by both domestic and overseas customers. Based on the powerful research and transformation capability of scientific and technological achievements, BJTYZ holds the ability to provide customers with various solutions. TYZ HMPE fibers has been successfully used in the final maritime salvage and recovery parachutes of the "Shenzhou Spaceship 5, 6, 7, 8, 9", the military amphibious tank beach gear system and the emergency landing system of war craft runaway, which have made great contributions towards strengthening the construction of national defense and public safety equipment in the world. Certifications Patents
Exhibition

FAQ 1.How Do We Guarantee Quality?
we ensure quality through a robust system covering Raw Materials Monitoring, Process Monitoring, and Product Inspection. We inspect the molecular weight, oil content, and particle size of raw materials. During production, we monitor solution viscosity, gel molecular weight, oil content, and have on-site monitoring, whole-process oversight, and a centralized control center. Our product inspection includes measuring denier, testing tenacity, modulus, and elongation, and surface inspection. We also archive quality data and add barcodes for traceability. These measures guarantee that every product meets our high standards of quality and performance.
2. What Can You Buy from Us?
HMPE Fiber: Ranging from 30 to 6400 deniers.
UD Sheets (Soft & Hard): Soft, hard, and aramid versions.
Hard Insert Plates: Ballistic plates in PE, alumina, or silicon carbide.
Vehicle Armour: Customized vehicle protection.
Helmets (PASGT, MICH, FAST): Advanced head protection.
Soft Armor: Ranging from concealable to full-protection vests.
3.Why Choose Us Over Other Suppliers?
Robust Production: 20,000 tons annually and across three factories and an R&D center.
Trusted Heritage: Part of SDIC.
Defense and Aerospace: Key supplier for China's Shenzhou series..
Global Presence: Serving over 110 countries, our quality and reputation are globally recognized.
Innovation Leader: Active in EUROCORD and ROPECORD.
Certified Quality: Tested by top global and Chinese institutions.
4.What Services Can We Provide?
Accepted Delivery Terms: FOB, CFR, CIF, FCA.
Accepted Payment Currency: USD, EUR, CNY.
Accepted Payment Type: T/T, L/C, D/P, D/A.
Languages Spoken: English, Chinese.
For more information please contact with us:
Beijing Tongyizhong New Material Technology Corporation
Stronger, Lighter,Safer with DOYENTRONTEX®
Stock Code: 688722 Address: No.17 Jing Sheng Nan Er Jie Street,Majuqiao, Tongzhou District, Beijing, China

---
