Plywood Machine Film Faced Plywood Press Macihne Lamintion Heat Press

Product Description

Hot press specialized in the production of plywood ,plywood is the ideal productwidely used in all kinds offurniture,office supplies,combination speaker,packaging exhibition andother industries. Product Description

Nominal pressure	8000 KN	Platen size	L:2700*W:1370*H:42mm
Feeding mode	Double in and out	Product size(mm)	1220*2440mm1pcs
Open-seat	70mm	Story number	30 layers
Diameter of plunger case(mm)	320*2250mm*4pcs(Main)	Working stroke(mm)	2100mm
Working pressure(kg/cm2)	21kg/cm2	Closing speed(m/min)	15m/min

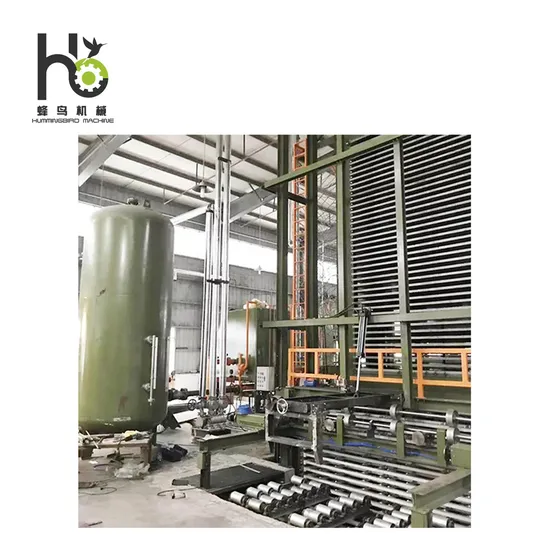

Over all size(mm)	L:3590*W:1370*H:6650mm	Nitrogen tank size	1440*6620mm(9m')1pcs
WVeight of nitrogen tank	4900kg	Hydraulic station size	L:3200*W:1500*H:2800mm
Tank volume	7m*	Total weight of hydraulic station	5800kg
Low pressure pump motor	22KW*2pcs	High-pressure pump motor	5.6KW*1pcs
Elevator motor	2.2KW*1pcs	Whole machine total power(kw)	51.8KW
Height of workshop	6500mm	Depth of foundation pit	4300mm
Total weight	75T

Loader of fully automatic 30 layer		JDRY-800T-30L-ZBJ
Product dimensions(mm)	1220*2440mm1pcs	Open-seat	70mm
Story number	30 layers	Ram& Cylinder(Frames Up)	160*3550mm*2pcs
Working stroke(mm)	3400mm	Lifting speed	15m/min
Overall dimensions(mm)	L:4220*W:2020*H:9000mm	Drive into the board	Double hydraulic motor
Total weight(T)	9.8T

Unloader of fully automatic 30 layer		JDRY-800T-30L-XBJ
Product dimensions(mm)	1220*2440mm1pcs	Open-seat	70mm
Story number	30 layers	Ram& Cylinder(Frames Up)	140*4000mm*2pcs
Working stroke(mm)	3850mm	Lifting speed	15m/min
Overall dimensions(mm)	L:4220*W:1015*H:10020mm	Drive into the board	Hydraulic motor
Total weight(T)	7.4T

Detailed Photos
1.CNC planer precision process frame.Polishing hot platen, thermal oildouble inlet and double outlet.
2. Adopt Taiwan Delta automatic PLC system, the whole machine is automaticoperation, easy to operate. Electrical components are Siemens Brand.
Heating System:
Uniform heat distribution, Efficient heating performance
Wear-resistant surface treatment, Precision temperature control, High-strength material construction
Hydraulic Station:
Stable pressure transmission, Efficient energy conversion
High reliability, Intelligent safety protection functions, Easy maintenance
Pressure Transfer System:
Stable pressure output,Precise control of pressure parameters
Strong durability, Suitable for different processing requirements, Safe and reliable
Control System:
Precise control of the processing process, Programmable operation interface
Fault automatic diagnosis, Highly intelligent, Strong customization capability
Lubrication System:
Continuous lubrication protection, Reduced friction loss
Increased component life, Efficient energy utilization, Automatic lubrication adjustment
Electrical System:
High safety performance, Energy-saving and environmentally friendly
Simple and easy-to-understand operation, Fault detection alarm, Efficient energy management
Safety Protection Devices:
Overload protection, Temperature overheat protection
Pressure overload protection, Emergency stop button, Safety guard
After Sales Service
Pre-sale service1.Provide the free consultation of equipment
2.Provide the standard device and the flow chart
3.According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
4.Welcome to visit our factoryService during the sales1. Inspect the machine before leaving the factory
2.Oversea install and debug the equipment
3. Train the first-line operatorAfter sales service1. 24 hours online service
2. Provide the VIDEO with install and debug the equipment
3. Provide technical exchanging
NOTE: Please leave your email, our professional person will contact you asap!

Our Advantages
1.lasering your logo on products and designing logo is free2.Delivery time within 30days3.No else charge4.MOQ≥15.Provide products quotation6.Provide Packaging customization service7.SupportWechat/Email/whatsapp/8.We specializein this field for 25 years9.Excellent after-sale system10.Supporting visits to factory

FAQ
1.Q: Factory or distributor?A: We are A manufacturer of wood-based panel machinery. Our products are manufactured by our own manufacturers and technical experts.2. Q: Quality control?A: Each machine is tested three times before delivery.3. Q: Lead time?A: 30-40 days after receiving the deposit.4. Q: Factory layout design?A: We have A team of engineers making floor plans for customers for free.5. Q: After-sales service?A: We have technicians to help customers with the installation.6. Q: Warranty?It's a one-year warranty, and we always provide parts and service.7. Q: Terms of payment?T/T or L/C will do.8. Q: behind MOQ?A: The moQ is 1 set.

---
