800ton Crate/Basket/Barrel Injection Molding Machine (stable performance, competitive cost, save energy, high quality)

Product Description

800ton Crate/Basket/Barrel Injection Molding Machine (Model: ZX-800)

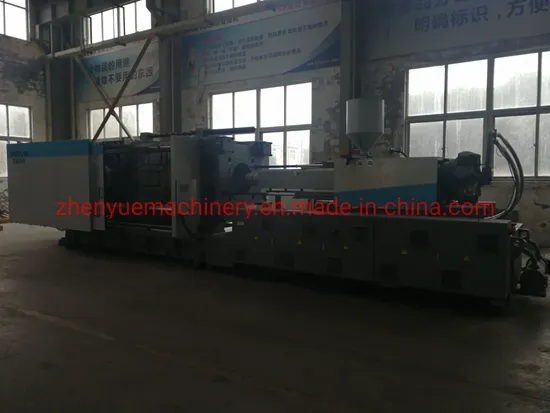

1,Photo
2, Technical Parameter

ZX-850	Injection Unit Date		A	B	C
	Screw diameter	mm	90	100	110
	Screw L/D ratio	/	23.4	21	18.9
	Theoretical shot volume	cm3	3181	3927	4752
	Shot weight(PS)	g	2926	3613	4372
	Injection rate	g/s	473	584	706
	Max.screw speed	rpm	96
	Clamping Unit
	Clamping force	KN	8000
	Toggle stroke	mm	1040
	Space bettween tie bars	mm	1000x1000
	Min.mold thickness	mm	420
	Max.mold thickness	mm	1000
	Hydraulic ejection stroke	mm	300
	Hydraulic ejection force	KN	200
	Others
	Hydraulic system pressure	Mpa	16
	Pump motor	kw	39.6+39.6
	Heating capacity	kw	48.7
	Oil tank capacity	L	1750
	Machine dimensions	m	12x2.5x3.3
	Machine weight	Ton	37.9

3, Platen Dimension
4, Machine Dimension (ZX-800)
5, Technical Characteristics
Remark: photos are only for visual reference.
6, Machine Factory
7, Contact Information
Contact Person: Mr. Tony
Comapny: Ningbo Zhen Yue Machinery Co.,Ltd.
Address: No.39, Lane 158, Huangcheng West Road, Ningbo, China.
Zip Code: 315012
Mobile: +86 13656841356
Tel: +86 574 87082687
Website: zhenyuemachinery.en.made-in-china.com
Remark:
1, the company reserves the right to revise all information (including word, photo) above.
2, due to technology development, the machine design or specification would be changed without any prior notice.
3, if you need CE machine, please tell us in advance of order. Otherwise, we provide normal machine (not CE machine). CE machine is special and expensive.

---
