Used Xg Concrete Pump Truck 40m Pumping Euro III Emissions

Product Description

Product Description
Basic data

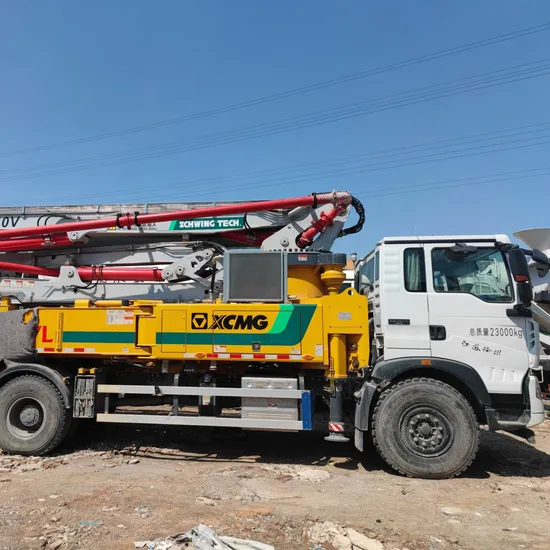

The XG HB40V is a 40-meter truck-mounted concrete pump truck designed for efficient and reliable concrete placement in construction projects. This pump truck is known for its advanced technology, excellent performance, high reliability, and superior durability. It is part of XG's "V7-series" concrete pump trucks, which incorporate top technology from Schwing, Germany, and adhere to German manufacturing process standards.
The XG HB40V 40-meter concrete pump truck is a powerful addition to any construction fleet, offering a combination of performance, safety, and efficiency that meets the demands of modern construction projects.
Parameter Specification

Model	HB40V
Boom Length	40m
Maximum Reach Height	39.1m
Maximum Horizontal Reach	35.1m
Maximum Vertical Reach	26.8m
Overall Dimensions	10395×2525×3820 mm
weight of the whole machine	23000 kg

Key Features:
1. Advanced Technology: The HB40V features state-of-the-art skirt valve pump technology and stable reversing buffer technology, ensuring reliable operation.
2. Powerful Output: The pump truck is mounted on a Sinotruk HOWO chassis, compliant with China V emission standards, offering powerful output, large torque, high efficiency, energy conservation, and strong off-road performance.
3. Electric Control Reversing: The pumping system adopts electric control reversing, which is faster and results in less system impact, improving the actual pumping efficiency by more than 5% compared to conventional hydraulic control reversing systems.
4. Safety and Durability: The HB40V is designed with an ultimately safe boom and a lower structure of high rigidity, ensuring safety and longevity on the job site.
5. Environmental Efficiency: The pump truck effectively reduces emissions with its reversing system, contributing to a longer service life.
Detailed Photos

Product Parameters

Parameter Specification

Model	HB40V
Boom Length	40m
Maximum Reach Height	39.1m
Maximum Horizontal Reach	35.1m
Maximum Vertical Reach	26.8m
Theoretical Output	120 m³/h
Engine Model	MC07.31-60
Maximum Net Power	225 kW
Emission Standard	Euro III
Chassis Brand	Howo
Chassis Model	ZZ5237V521GF1
Wheelbase	5200 mm
Pump Pressure	8 MPa
Delivery Cylinder Diameter × Stroke	φ230×1600 mm
Outrigger Type	X
Overall Dimensions	10395×2525×3820 mm
weight of the whole machine	23000 kg
