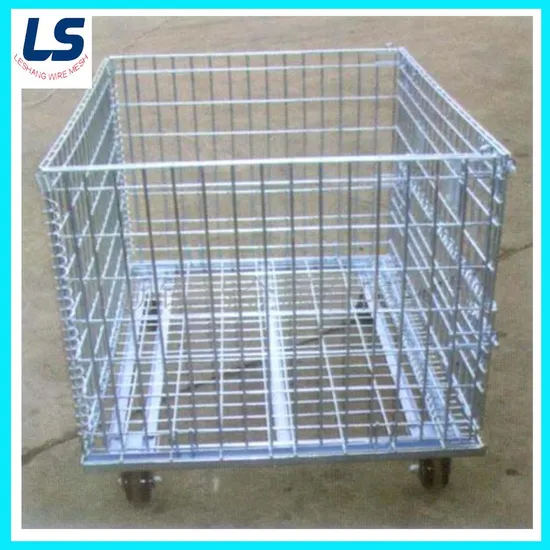

Wire Mesh Container with Caster and Fork Stirrups

Product Description

Wire container is also known as storage cage, butterfly cage and warehouse cargo cage. It is a kind of metal cage with network structure used to store goods. TAWINER Wire Container Company's products have the features of fixed capacity for storage, neat stack, intuitive storage, and convenient for stock inventory.
the bottom is reinforced by U-shaped steel beam, high strength, high load capacity, can be stacked four layers, achieving a three- dimensional storage. Wire container with casters can facilitate the turnaround in the workshop
Our wire containers are widely used in warehouse, workshop, logistics distribution center, and supermarket.
Additional accessories:
Casters.
Caster brakes.
Full drop gate.
Swing gate.
Fork pockets.
Fork stirrups.
Lid.
Divider.
Runners.
Label card.
Surface treatment: electro-galvanized (zinc coating thickness: 6 - 8μm), hot-dip galvanized (zinc coating thickness: 35 - 90μm), PVC coated, painting colors you chose.
Stack-ability: 3 or 4.
Standard: ISO9001.
Packing: in bulk bundled by steel strips.

Item No.	External dimension (L × W × H) (mm)	Internal dimension (L × W × H) (mm)	Wire diameter (mm)	Mesh gauge (mm)	Loading capacity (kg)	Self-weight (kg)
A-1	800 × 600 × 640	750 × 550 × 500	4.8	50 × 50	400	20
			5.3		600	23
			5.6		700	27
			5.8		800	29
A-2	800 × 600 × 640	750 × 550 × 500	5.8	50 × 100	600	25
A-3	800 × 600 × 640	750 × 550 × 500	6.3	50 × 50	1000	32
A-4	1000 × 600 × 640	950 × 550 × 500	6.0		1000	37
A-5	1000 × 800 × 840	950 × 750 × 700	6.0		1200	49
A-6	1200 × 800 × 840	1150 × 750 × 700	6.0		1200	55
A-7	1200 × 1000 × 890	1150 × 950 × 750	6.0		1500	65
B-1	1000 × 800 × 840	950 × 750 × 700	4.8		600	30
			5.3		800	35
			5.6		1000	42
			5.8		1200	44
B-2	1000 × 800 × 840	950 × 750 × 700	5.8	50 × 100	1000	39
B-3	800 × 600 × 640	750 × 550 × 500	6.4		800	29
	1000 × 800 × 840	950 × 750 × 700	6.3	50 × 50	1500	51
B-5	1000 × 800 × 840	950 × 750 × 700	6.4		1500	55
	1000 × 800 × 490	1000 × 800 × 350	6.4		1000	40
B-7	1200 × 1000 × 890	1150 × 950 × 750	6.4		2000	71
B-9	1200 × 800 × 840	1150 × 750 × 700	6.0		1500	55
C-1	1200 × 1000 × 890	1150 × 950 × 750	5.6		1300	53
			5.8		1500	60
C-2	1200 × 1000 × 890	1150 × 950 × 750	5.6	50 × 100	800	48
			5.8		1000	53
	800 × 500 × 540	750 × 450 × 400	4.8	25 × 50	500	25
C-3	1200 × 1000 × 890	1150 × 950 × 750	6.3	50 × 50	2000	68
C-4	1200 × 1000 × 890	1150 × 950 × 750	5.6	50 × 100	800	48
C-5	1000 × 800 × 840	950 × 750 × 700	4.8	50 × 50	500	37
C-7	1200 × 1000 × 890	1150 × 950 × 750	4.8		500	44
D-7	1200 × 1000 × 890	1150 × 950 × 750	6.0	100 × 100	500	50
S-5	1000 × 800 × 840	950 × 750 × 700	6.4	50 × 100	1000	47
S-6	1200 × 800 × 840	1150 × 750 × 700	6.4		1000	56
S-7	1200 × 1000 × 890	1150 × 950 × 750	6.4		1200	62

---
