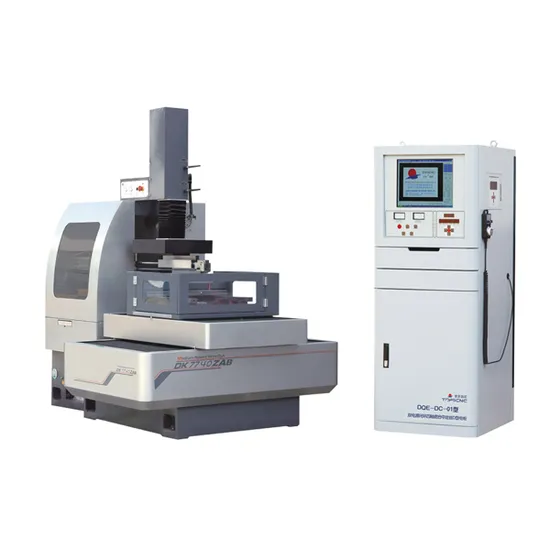

Professional Manufacturer Zab Series Wire Cut Machine EDM

Product Description

Technique parameters

Technical parameter	Unit	DK7732ZAB
Table size (W*D)	mm	440×680
Table travel (X*Y)	mm	320×400
Table size(U*V)	mm	140x140
Max. workpiece weight	kg	600
Max. thickness of workpiece	mm	350
Max. taper angle/workpiece thickness		±6°/80mm
Molybdenum Dia.	mm	φ0.15~φ0.2mm(recommend φ0.18mm)
Max. wire feed rate	m/sec	1~11.4m/sec frequency adjustable
Machining precision	mm	≤0.012
Max. machining speed	mm2/min	160
Surface roughness	μm	one time Ra≤2.5 three times Ra≤1.2 five times Ra≤1.0
Motor type		X,Y,U,V stepper motor
axis controlled		4 axis simultaneous
Min.control pace	mm	0.001
Power supply		380V,3Ph,50Hz
Max. working current	A	10
P ower consumption	Kw	1
Work liquid		JR3A
Water tank	L	90
Filtering mode		Paper filter/Italy pump
Closed protective cover		standard
Machine weight	kg	1800
Machine dimension	mm	1800×1400×2150

1. Optional two-axis or four-axis hybrid stepper motor or AC servo motor; electronic hand wheel shift axis; reverse gap, pitch compensation, grating closed loop
2. Good taper cutting accuracy
3. Good water to follow the molybdenum wire characteristics
4. Bed with resin sand casting, two high-temperature heat treatment, effective control of the deformation of the machine
5. Imported precision linear guide, double nut precision ball screw, long time to maintain mechanical precision
6. The use of low-voltage, unimpeded, constant current high-frequency power supply for processing and cutting, making the cutting efficiency, surface roughness, molybdenum wire loss and other process indicators in the leading domestic level
7. The use of small pulse width, high current constant pressure source for processing repair knife, greatly enhance the stability of multiple cutting, consistency and process indicators
8..U, V-axis optional linear guide, ball screw, improve the quality of taper processing
9. Reasonable environmental protection closed structure design
Company Information
Founded in 1958 and developed more than half a century, Jiangsu Dongqing CNC Machine Tool CO. Ltd., has now became a forge ahead modern enterprise for production of CNC machine.

The R&D, production and marketing are the main component of the company. As shown on the website, the main product of the company covers five series, CNC milling machine & vertical machining center, CNC engraving machine, CNC wire cut EDM, Die sinking EDM and Micro hole drilling EDM.

The company has always engaged in improving the quality, function and performance of CNC machine in the past several years. It has successfully passed identification of ISO, CE, SGS, TUV & Bureau. "Innovation, development and win-win situation" makes TOPSCNC enjoy high reputation in this line.

TOPSCNC people wish to share success with you in the future!
TOPSCNC Customer
Our service
1) Quality : We take care of the product quality in order to provide good service to our customers.
2)Warranty: One year after shipment,consumables are not included.
3)The quotation do not include installation and education training fee.
4) Payment Method: T/T or L/C
5) Delivery time : 18--25 days
6) Packing : Standard export wooden cases
7) Port: Shanghai or any China port
Contact us
Company: Jiangsu Dongqing CNC Machine Tool Co. Ltd.
Address: East Suburb Development Zone, Taizhou city, Jiangsu Province, China


Web: topscnc.en.made-in-china.com

---
