Car Connector Mini Fakra Connector Type Z for 1m Rg174ll Cable Can Be Custermized

US$10.00
100-999 Pieces
US$9.00
1,000-4,999 Pieces
US$8.00
5,000+ Pieces

Basic Info.

Model NO.
MINI FAKRA SMB-C-K1.5-X-2
Material
Brass
Gender
Female
Certification
RoHS2.0
Application
GPS
Pin
Brass
Housing
Plastic
Color
Water Blue
Frequency Range
DC to 9 GHz
Impedance
50Ω
Working Voltage
≤60 V DC
Part No.
Shm.901.0003-2.Xx.a-Xx(Xxx)
Transport Package
Box
Trademark
SH-Link
Origin
China
HS Code
85442000
Production Capacity
1400000/Year

Packaging & Delivery

Package Size
42.00cm * 32.00cm * 36.00cm
Package Gross Weight
5.000kg

Product Description


Product Description
TECHNICAL DATA
Frequency Range DC to 9 GHz
Impedance 50Ω
Working Voltage ≤60 V DC
insulation Resistance ≥ 1000MΩ
Center contact Resistance ≤ 15 mΩ
Outer contact Resistance ≤ 5 mΩ
Data transmission rate up to 20 Gbps
Mechanical Data
Mating cycles ≥ 25
Mating cycles (waterproof) ≥ 5
Retention force latch ≥ 110 N
Material Data
Plastic Housing PA.PBT
Insulators LCP
Environmental Data
Temperature range -40 °C to +105 °C
Thermal shock IN EN 60068-2-14
Humidity USCAR 2.4.-5.6.2
Dry heat DIN EN 60068-2-2
Vibration DIN EN 60068-2-64
RoHS Compliant
Cable RG174LL

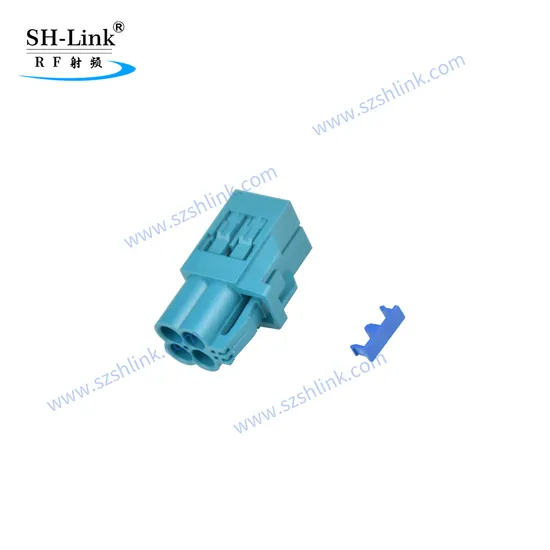

Detailed Photos
Company Profile
Company Profile
Shenzhen Sihanming technology Co, LTD (Shenzhen Sihan Communication Technology) was established in 2006,is a company that sets professional design,development,production,sales as one.Our main products are RF coaxial connectors,RF jumper,MMCX connectors for earphone,test connectorfor Mobile phone,fakra automotive connectors,High freguency low loss test cable,tRF adapter and RF antennas..ln the same time,we are the agent of the Japanese ipex , Japanese Murata and Japanese Hirose.
2010:Company independently research and develop for automotive connector Fakra series products and formally put into production.And get several patents of appearance and utility model.
2012:Shenzhen Sihanming Technology Co., Ltd passed the assessment of ISO9001.
2013:Shenzhen Sihanming Technology Co., Ltd passed the assessment of TS16949.
2015:The LOGO SH-Link register successfully. ln the same year our company was identified as"high-tech enterprise by "shenzhen science and technology innovation and technology commission "and issue a certificate.
2018:Shenzhen Sihanming Technology Co., Ltd passed the assessment of IATF16949 and ISO14001
Our Workshop

Our Exhibition

FAQ
FAQ
Q: Where can I get product&price information?
A: Send us inquiry e-mail , we will contact with you when we receive your emai.
Q: How long can I get the sample?
A: Depends on your specific items,within 10-15 days is required generally.
Q: What's kinds of information you need for quote?
A: Kindly please provide the product drawing in PDF,and will be better you can provde inSTEP or IGS.
Q: What's the payment terms?
A: We accept T/T 30% deposit when order confirmed,remaining 70% paid before deliveryFor small amount, we accept Paypal, Paypal commission will be added to the order. For big amount, T/T is preferred
Q: How to ship the goods?
A: We ship the products by courier company or if you have DHL,UPS,FedEx account,we can use it to ship samples.
Q: Are you a trading company or factory?
A: We are direct factory with 11 experienced engineers and more than 80-90 employees as well approximate 1,000 square meters workshop area.
Q: What shall we do if we do not have drawings?
A: Please send your sample to our factory,then we can copy or provide you better solutions.Please send us pictures or drafts with dimensions(Length,Hight.Width).CAD or 3D file will bemade for you if placed order.
Q: Can we get some samples before mass production?
A: Absolutely .we will deliver samples for confirmation after we tried the new moulds
Q: Will my drawings be safe after sending to you?
A: Yes, we will keep them well and not release to third party without your permission.
