Accurl Automatic Panel Bender Metal Sheet Bending Machine Center

Product Description

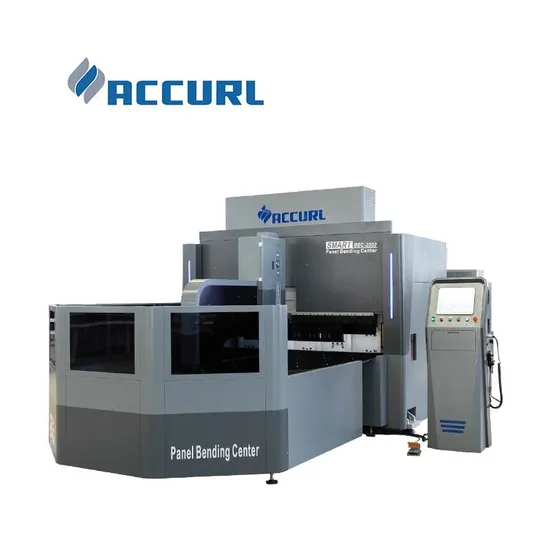

ACCURL New Panel Center Bender FBE1400 Automatic Panel Bender Center
Product Description
ACCURL PBE series PANEL BENDER CENTERPBE Series panel bender is the new generation automated bending solutions, a benchmark that indicates the upgrading to automation of sheet metal fabricating industry. It can obviously reduce the labor cost and at the same time it can realize 300% higher efficiency comparing to traditional press brake up to 0.3s per bending. Full electro servo transmission plus closed-loop BUS control makes the accuracy far better.
Detailed Photos
"MACHINE EXPERT FOR SHEET METAL" ACCURL is enabling the upgrading of conventional sheet metal fabricating industry and reimaging what can be made.FEATURE-MULTI POSITIONING WAYSThe frame is welded by carbon dioxide shielded welding, which has many advantages such as stable welding process, no internal defects, and minimal spatter.

Name	Unit	Value	Value
Max. Bending Length	mm	1400	2000
Max. Sheet Width	mm	1400	1500
Max. Bending Height	mm	170	170
Min. Workpiece Size (four sides bending)	mm	110x200	110x200
Min. Workpiece Size (single side bending)	mm	110	110
Min. Radius	mm	1.2	1.2
Bending Angle	°	±180	±180
Max. Bending Speed	s/bending	0.5	0.5
Min. Sheet Thickness	mm	0.35	0.35
Dimensions(L×W×H)	mm	3000x2000x2600	3100x5300x2600
Full Power	KW	36	45
Working Voltage	V	380V±10%	380V±10%

FEATURE-AUTOMATIC CORRECTION OF ROTATION ANGLEThe arc bending process requires repeated bending of the plate. If the rotation angle is not in place, the bending error will accumulate each time, resulting in the folded workpiece is not an arc, but a cone. The automatic correction function can automatically adjust the C/C11 axis to compensate for sheet rotation errors. CNC AXES-11 AXES A/B axes: Positioning axes V axis: Feeding axis C/C11 axes: Rotation axes W/W11 axes: Pressing axes Z/Z11 axes: Tooling up&down motion axes Y/Y11axes : Tooling forward&dbackward motion axes.CONTROLLING SYSTEM In view of the high-intensity motion requirements of the panel bender, the frame adopts an arch design, which is thickened and widened. The frame is tempered, annealed and aged twice to ensure the long-term running accuracy, stability and high rigidity of the machine. View More Products,click here...
