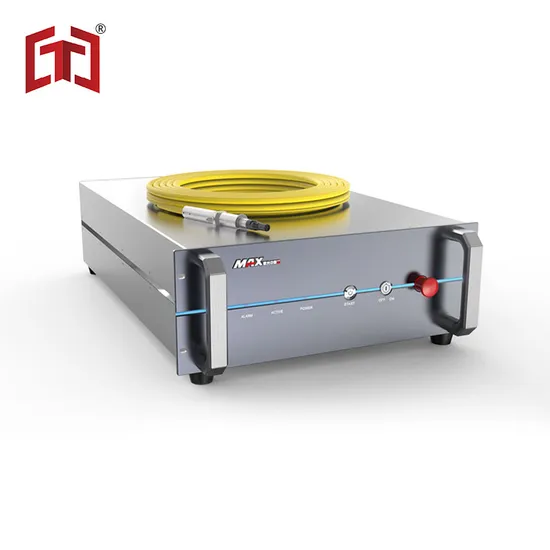

Max Fiber Laser Source Single Mode 1500W Cutting for Laser Cutting Machine

Product Description

Product Description
MFSC 1000X-1500X Single Module CW Fiber Laser, based on modular design,has excellent beam quality and high stability, which structure is compact and water-cooling. The laser can be adjusted continuously, and the beam is transmitted be fiber and QBH connector, which is ideal for laser cutting, laser welding, etc . The laser is very suitable for system intergration with robot or machine tool, and is widely used for laser cutting, welding, 3D printing, electronics, automobile parts,aerospace, etc.
Product Feature
Product Parameters

Models	MFSC-1000X	MFSC-1500X
OPTICAL SPECIFICATIONS
Nominal Power	1000W	1500W
Mode of Operation	CW/Modulated
Polarization	Random
Power Tunability	10 to 100%
Wavelength	1080 ± 10 nm
Power Stability	±1 %
Laser Beam Quality, BPP	≤1.5 mm x mrad (50μm QBH)
Modulation Frequency	≤20 kHz
Preview Red Light Power	150 μW
FIBER DELIVERY SYSTEM
Interface	QBH (LOC)
Length	15m standard, other lengths optional
Diameter	50 (25) μm		50 (35) μm
Bending Radius	200 mm
ELECTRICAL RATINGS
Supply Voltage	220VAC (-15% to +10%) Single-phase
OTHER SPECIFICATIONS
Operating Temperature	+10 to +40ºC
Storage Temperature	-10 to +60ºC
Humidity	10 to 85%
Cooling Method	Water Cooling
Cooling Medium	Distilled water/ Glycol Antifreeze
Dimension	482.6×800×193mm (W×D×H)
Weight	53(±3) kg	57(±3) kg
