Horizontal Low Pressure Shenzhou Wooden Cases 650*650*620mm Distiller Plate Centrifuge

Product Description

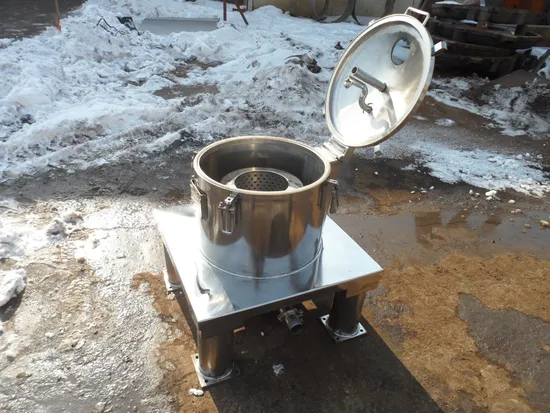

Product Description Plate Bag Lifting Top Discharge Centrifuge/ Chemical Centrifuge With Adjustable Speed
Description:PPBL series plate bag lifting top discharge centrifuges are filter equipment with hermetic closure procedure task, intermittent operation and hanging bag off-site discharge.
Main features: Structural design is reasonable and effective to eliminate the health corners, structural parts smooth transition, the surface polished, external components, fasteners, and with the material contact parts are made of stainless steel shell for the clamshell can be laminated on the centrifuge housing and drum of cleaning space. Base and the flat structure, reducing the machine center of gravity, small size, the overall base and the shell is welded form, bearing strength. Configuration of liquid rubber damping shock absorber damping fluid or, more effectively eliminate the vibration can be realized without basic installation. Shell can flip clamshell model with a large or small, flip, cover with feed tube can be equipment, washing pipe, observation port, light mouth and spray systems, other protective devices can be equipped with nitrogen to ensure the centrifuge separation chamber and outside air Direct type-specific motor, belt drive eliminates the potential dust, inverter start, start the smooth, dynamic braking, the whole good sealing performance, can be anti-explosion, can be applied to toxic and flammable, explosive situation. Nitrogen also can be equipped with protective devices to ensure the centrifuge chamber and the outside air isolation.
Applications: The model for the large solid content in feed solution, fine particles, but also difficult to filter the nature of manufacturing high density difference between a use state of separation equipment can be used alone, but also as a tube pre-treatment process separator the use of centrifuges in operation and linked to contrast and cup, such as bowl speed and the same diameter, the aircraft has a large capacity, the advantages of simple operation.
The plate filter centrifuge is a equipment that uses the principle of centrifugation to separate particles in a suspension from the liquid. It is widely used in fields such as chemical engineering, food, industry, and agriculture. Solid liquid separation: Plate type filtration centrifuges can be used for various industrial solid-liquid separation, such as the removal of solid suspended solids in mineral water production and solid-liquid separation after chemical reactions.
Particle recycling: The flat filter centrifuge can be used to recycle solid particles generated during the production process, improving product quality and production efficiency.
Concentration and dehydration: Plate type filtration centrifuges can be used for concentration and dehydration treatment, such as pulp dewatering, sludge dewatering, etc.
Fine material separation: Plate filter centrifuges can be used for the separation of fine materials, such as the preparation of high-purity chemicals and the production of ultrafine powders.
Structure and principle: PSC slab based on the discharge centrifuge drum parts, Direct motor driven drum rotates at high speed itself, forming a centrifugal force field, no pass-falling high-speed centrifuge, high speed and large separation factor. Equipped with a closed upper lid and write catheters, feeding tubes feeding from the top center of gravity into the center of the fabric devices, liquid by the fabric is uniformly deposited on the drum wall devices, high-speed centrifuge spin, the role of the centrifugal force field with solid material deposited on the drum inside the liquid by siphon write-liquid discharge device, the solid phase to be shut down manually after unloading from the top. Product Parameters

type item		PSC450-NC	PSC600-NC	PSC800-NC
bowl	wall thickness(mm)	6	10	10
	inner diameter(mm)	450	600	800
	height(mm)	300	315	400
	Sedimentation area(m2)	4.2	0.66	1.00
	Liquid blocking plate diameter(mm)	320	420	560
	volume(L)	20	45	90
	max feeding(kg)	30	100	135
	speed(r/min)	2500	2500	1500
	factor	1600	2000	1000
motor	type	YB100L-2	YBL160SL	YB132M-4
	power(kw)	2.6	4.0	5.5
	speed(r/min)	0~2825	0~2884	0~1500
seize(mm)		650×650×620	800×800×760	1100×1100×1000
weight(kg)		380	610	1300

---
