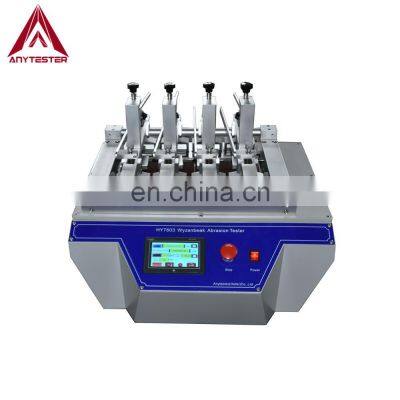

Product DescriptionHY7603 Wyzenbeek Abrasion Tester is used to determine the abrasion resistance of fabrics by the oscillatory cylinder method.Working Principle:The specimens are rubbed against a standard abradant or a wire mesh screen with a backward and forward motion over a curved surface under a specified tension and pressure. After a specified number of cycles, take out the specimens from the clamps on the machine and evaluate the abrasion performance of the specimens.StandardASTM D4157Note: For more standards, please contact usSpecificationModelHY7603Test travel76 ± 2 mmTest speed90±1 cycles/min, adjustableWorking position4Abrasion tableCurved surface: R 100 mm, length: 400 mmTension range1~ 6 lbf adjustableTension adjustment weight340gPressure range1~3.5 lbf adjustablePressure adjustment weight150gSpecimen size45*230mmSpecimen number16pcsDimensions500*500*600mmWeightApprox. 80kgPower supplyAC220V, 50HzDetails & Features★ Nice appearance, easy to operate.★ With 4 working positions, can test 4pcs of specimens at the same time;★ The test table is made of aluminum alloy material, rustless, nice and durable. With 4pcs of sliding tension weights & tension levers and 4pcs of sliding pressure weights and pressure levers. ★ PLC touch screen control, easy to operate.★ Two working modes selectable: counting mode or timing mode. The machine will stop at a set cycles or a set time.Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
>>
