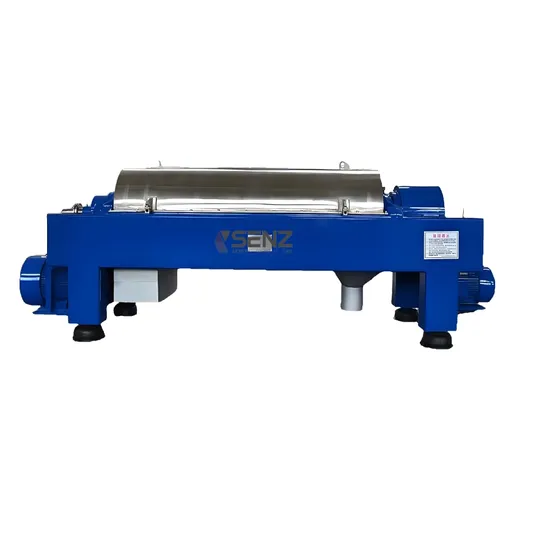

Avocado Oil Decanter Centrifuge for Extraction Processing

Product Description

Product Description of Avocado Oil separation decanter centrifuge
Application
The LWS Three Phase Decanter is a new type of three phase horizontal screw decanter centrifuge mainly suitable for three phase separation oil,water and slage in the oil production line,and also applicable to three phase separation of liquid-liquid-solid from olive oil,palm oil,coal tar and other similar materials.
This decanter centrifuge continuously produce with a high production capacity and small energy consumption per unit,but also has the best separation effect,minimum material loss,most convenient operation and most economical installation and maintenance costs,the new light and heavy liquid phase distribution devices and reliable labyrinth seal structure are used to achieve the best oil and water separation,the advanced slag-discharge structure is also used to achieve the continous and smooth solid phase slag discharge avoiding the occurrence of blocking materials,while eliminating solid phase and water mixing in downtime.
The decanter centrifuge adopts double variable-frequency stepless speed regulation for start and speed control with simple debugging and high adaptability.
Reference standard
1. Main standard of the national machinery industry.
JB/T502-2004 "spiral discharge sedimentation centrifuge"JB/T9095-1995 "centrifuge, separator forgings, welding conventional NDT technology standard"
2. The national main standard
GB10894-89 "separation machinery noise sound power level measurement engineering method"
Structure

1. drum; 2. screw pusher; 3. planetary gear differential; 4. base; 5. stainless steel cover; 6. absorber; 7. motor;

Three phase decanter centrifuge specialy used for separate sludge and oil, water.

1.The integral design of the machine adopt international advanced type of structure design in recent years, m
otor puts beside, cover flat on flame structure, it causes that the machine maintenance is more convenient, low
noise, small vibration, easy installation.
2.Stainless steel cover adopts enclosed design, peculiar smell gas of the machine in the work is not be leaked.
It leads that the work environment satisfies the requirements.
3.Drum material adopts stainless steel 304.
4.Vibration system adopts drum high modulus of elasticity of absorbing vibration damping device. Compared to
previous models, the machine vibration is greatly reduced.
5.Electrical control adopts double frequency automatic control system
6.The other main components adopt joint venture or wholly-owned or domestic famous brand products.
Technical Parameters

Model	Dia mm	Ratio	Speed rpm	G force	Main Motor (Kw)	Auxiliary Motor (kW)	Capacity m3/h	Weight kg	Dimension (L×W×H)mm
LWS240×720	240	3	5000	3360	7.5~11	3~4	0.3~1.8	750	1900×1250×680
LWS355×1460	355	4	3600	2576	15~22	4~5.5	2~10	1800	2270×1350×830
LWS450×1800	450	4	2800	2195	30~37	7.5~11	4~25	2500	3320×1700×1130
LWS500×2000	500	4	2800	1976	45~55	7.5~11	5~30	2800	3520×1800×1170
LWS530×2120	530	4	2600	2006	55~75	11~18.5	5~40	3800	4490×1425×1690
LWS600×2400	600	4	2400	1935	75~90	15~18.5	6~45	4500	5090×1300×1650
LWS650×2880	650	4	2400	1761	90~110	18.5~22	6~65	6000	5200×1550×1800
LWS720×2880	720	4	2200	1612	110~160	22~30	70~110	8000	6100×1600×180

---
