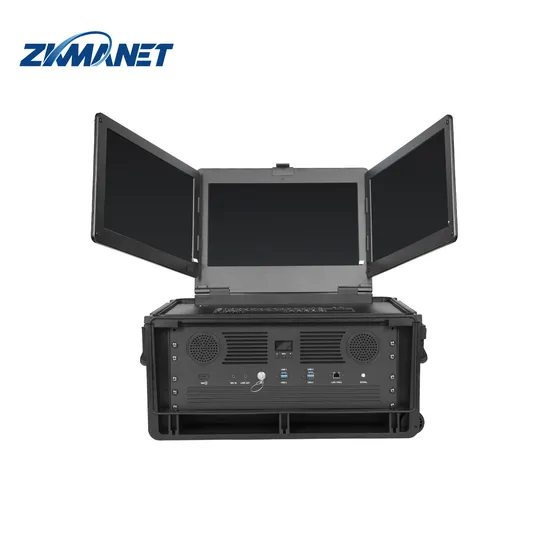

IP Mesh Network Triple Screen Video Command Computer Ground Control Station

Product Description

Product Description
The ZKManet2972 is a MESH portable command station developed for on-site command. It can manage and set up various Mesh nodes within the network through link management, allowing users to view signal strength of each link, video and data information of each node, display front-end video in real-time, and conduct voice intercom. MANET9601 can serve as a front command post or transmit data back to the main command center via 4G/5G private network or public network for coordinated operations. It is mainly used to receive data information from individual soldiers and relay transmissions.
Features
* Data rate up to 56Mbps
* Full-duplex bidirectional data transmission
* Full transparent IP data transmission
* Flexible networking, rapid deployment
* Rugged IP67
* Supports video monitoring
Product Parameters

Model	ZKManet3961	Brand	ZKMANET
Host Parameters	OS	WIN10
	CPU	Intel I7
	Display	15.6-inch HD screen
	Memory	8G
	Storage Method	250GB SSD
	Mode of Operation	Embedded mouse and keyboard
RF Parameters	Frequency	1300-1500MHz (70MHz-6GHz customizable)
	Bandwidth	2.5/5/10/20MHz
	RF Channel	2T2R
	Output Power	2W
Network Parameters	Capacity	10 nodes customizable
	Data Rate	56Mbps
	Public Network	4G/5G
	WIFI	2.4GHz/5.8GHz
	Encryption	AES
Physical/Environment	Dimensions	577*353*211mm
	Weight	15kg(w/ battery)
	IP Rating	IP65
	Working Temp	-20ºC~+65ºC
Electrical Parameters	Power Supply	24V
	Battery Capacity	21Ah
	Power Consumption	<50W
Other	FHSS	Optional
	IFS	Optional
	Voice Intercom	Support
	Positioning	Support
	HDMI Input	Support

Panel Description
1. Sim card2. Line out3. Display4. USB interface5. Indicator6. MIC in7. PTT interface8. USB interface9. RJ45 interface10. GPS antenna interface11. WIFI antenna interface12 .5G antenna interface13. 5G antenna interface14. 5G antenna interface15. 5G antenna interface16. Mesh antenna interface17. Mesh antenna interface18. RJ45 interface19. HDMI interface20. Power input21. Power output22. Power interfaceApplication
Video command station in central control station
