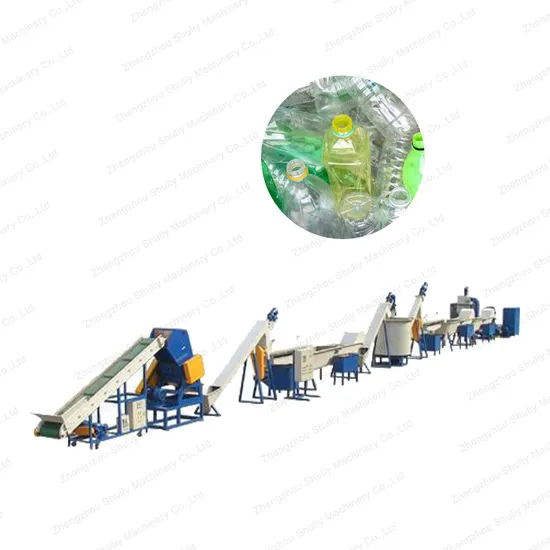

Waste Bottles Pet Plastic Recycling Machine/Waste Plastic Crushing& Washing&Drying Line

Product Description

Product description:
The raw material for our PET recycling machine is PET bottles, also called them cold water bottles. The main function of PET recycling
machine is to crush and clean the PET bottles.
In the process of crushing and cleaning, the raw materials of the bottle cap and the bottle body are different,so the caps will be separated
in the process, leaving only the bottle body. And the final product obtained is clean PET flakes.
Production Process:
1. Climbing Conveyor:Convey the bottle to label removing machine.
2. Label Removing Machine: Remove the label from the bottle.
3. Sorting Conveyor:Transfer the no label bottle to another climbing conveyor,At the same time ,select again not fully
removing label bottles and different colors bottles.
4. Climbing Conveyor:Convey the bottle to bottles crushing machine.
5. PET Bottle Crusher Machine:Crush the bottles into small chips.
6. Screw Conveyor:Convey the plastic chips into PET ,PP washing and separating machine.
7. PET, PP,PE washing and separating machine:washing and Separate PET chips and PE bottle cap.
8. Screw Conveyor:Convey washed PET chips into high temperature washing barrel.
9. High Temperature Washing Barrel:Wash PET chips with hot water and cleaning agent.
10. Screw Conveyor:Convey washed PET chips into rubbing washing machine.
11. Rubbing Washing Machine:With water recycling , clean the PET bottle enough ,remove cleaning agent
and other impurity.
12. PET,PP,PP washing and separating machine:Separate PET chips and PE ,PP bottle cap completely .
13. PET Chips Dewatering Machine:Dewatering for PET chips
Application:
1.PET flakes can make packing belt.
2.PET flakes can add some other material to do something,such as add some lime to make tiles.
3.PET flakes can make new plastic products,these products can used for industry.
Capacity:
PET recycling machine smalleast capacity is 500kg/hour.
We also have 1000kg/hour,1500kg/hour,2000kg/hour and so on.
We can customize according to your demands.

---
