US$70,000.00-120,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Machining Process
Hydraulic
Vibrating Amplitude
1.6mm
Certification
ISO9001: 2000, CE
Transport Package
Bulk Cargo Shipping
Specification
11990mm*2490mm*3900mm
Production Capacity
500pieces/Year

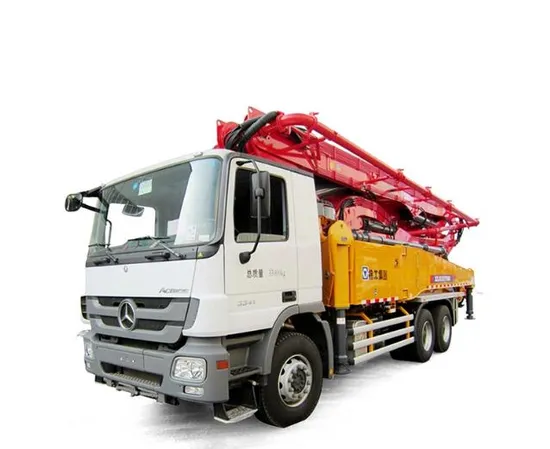

Product Description
Product Description
No. Item Unit Parameter
| 1 | Max. speed | km | 90 |
| 2 | Min. turning diameter | m | 18.4 |
| 3 | Brake distance | m | 7 |
| 4 | Approach angle | ° | 31 |
| 5 | Departure angle | ° | 12 |
| 6 | Chassis model | | CXZ51Q ( Japan ) |
| 7 | Total weight | kg | 28150 |
| 8 | 1st axle load | kg | 6780 |
| 9 | 2nd, 3rd axle load | kg | 21220 |
| 10 | Engine model | | 6WF1 |
| 11 | Max. Engine power | kW | 287 |
| 12 | Max. Engine torque | N.m | 1862 |
| 13 | Max. grade-ability | % | 38 |
| 14 | Fuel consumption limit | L/100km | 34 |
| 15 | Outline dimensions (Length´ Width ´Height) | mm | 11990´2490´3900 |
Technical Data for Pumping Operation
No. Item Unit Parameter
| 1 | Theoretical output | m3/h | 138/90 |
| 2 | Max. delivery pressure | MPa | 8.7/13 |
| 3 | Reach height | m | 37.4 |
| 4 | Reach depth | m | 23.7 |
| 5 | Front outrigger transverse span | mm | 7280 |
| 6 | Rear outrigger transverse span | mm | 6600 |
| 7 | Outrigger longitudinal span | mm | 6860 |
| 8 | Delivery pipe diameter | mm | 125 |
| 9 | Remote control distance | m | 100 |
| 10 | Placing boom slewing range | ° | 370 |
Company Profile
FAQ
1:What are your main export construction machineries?
A:Used concrete mixer truck,Used trailer concrete pump,Used concrete line pump,Used Truck mounted concrete pump,Concrete batching plant,used cranes,used excavators,used road machinery, used piling machinery and so on.Ranging second-hand original machineries to refurbished machineries .
2:Is your company a factory or a trader?
A:We are re-manufacturing factory with a big used construction machinery trading platform.we specialize in construction machinery wholesale and concrete machinery re-manufacturing for more than 13 years.
3:What are the advantages of re-manufacturing machineries and what quality of your refurbished machineries?
A:The big advantage is price of used machine,value of new machine.We set the highest maintenance and re-manufacturing standard system,strictly inspect and repair according to the standard,Our each re-manufacturing will go through 14 processes from admission test to final inspection to make sure the best quality.
4:How do I know the condition of the original used or re-manufacturing concrete pump truck?
A: We will provide a video of the specifications and the test of the pump truck before we ship to you.
5:What is the minimum order quantity for your used machinery?
A: The MOQ is 1 unit.
>>
