Basic Info.
Machining Process
Hydraulic
Certification
ISO9001: 2000, CE
Product Name
58m Concrete Pump Truck
Concrete Pumping Pressure
10.2MPa
Outline Size
14660*2530*4000mm(L*W*H)
Transport Package
Comply with Export Packaging Requirements
Specification
14660*2530*4000mm
Trademark
Top Brand China
Production Capacity
50000 Pieces/Year
Packaging & Delivery
Package Size
14660.00cm * 2530.00cm * 4000.00cm
Package Gross Weight
44000.000kg
Product Description
Product Description

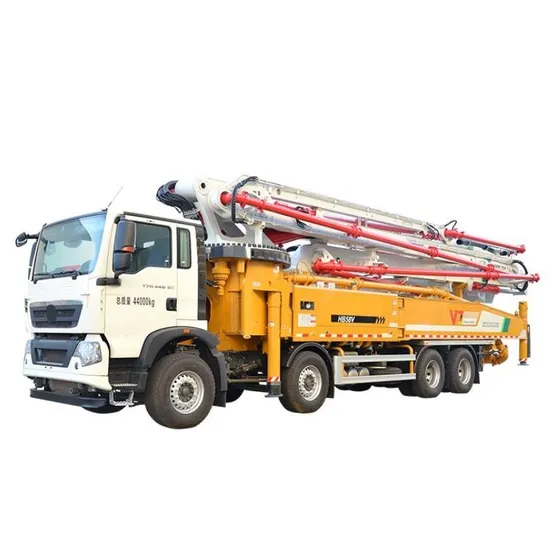

The HB58V concrete pump truck is a new concrete pump truck with Schwing series independently developed by Top Brand China. It is the world's longest boom pump truck with four-axle curved outriggers.
In the design, the Howo chassis is adopted, following the principle of "high starting point, high technology, high performance, high reliability, and high quality", with curved outriggers, intelligent boom damping technology, and full hydraulic reversing technology, The industry's unique skirt valve pumping system and other product highlights. Advantages and Features
1.Ultimately Safe Boom.
2.Lower Structure of High Rigidity.
3.Hydraulic System of Outstanding Performance.
4.Effectively reduce emissions with the reversing, vulnerability of longer life.
5.The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
Product Parameters
| Category | Item | Unit | HB58V |
| Overall | Outline dimension | mm | 14570×2530×3990 | 14660×2530×4000 |
| Overall weight | kg | 44000 |
| Brand | / | HOWO |
| Chassis | model | / | ZZ5447V466HE1 | ZZ5447THBV406MF1/U7DB |
| Wheelbase | mm | 2500+4300+1400 | 2600+4000+1400 |
| Max.power | kW | 294 | 328 |
| Engine | Emission | / | China V | China VI |
| Theoretical | m³/h | 180 |
| Pumping system | Concrete pumping pressure | Mpa | 10.2 |
| Theoretical pumping times | Times/min | 22~24 |
| Delivery cylinder diameter × stroke | mm | φ260×2200 |
| Placing boom | Reach height | m | 57.5 |
| Reach depth | m | 40.5 |
| Slewing radius | m | 52.5 |
| Slewing angle | ° | ±270 |
| Others | Transfer tuble | / | Rock valve/S valve |
