Environment Friendly Waste Tire Shredder for Recycling Equipment / Tire Shredding Machine

Product Description

For the waste tire end machining material, granule and powder. They can be used for airstrip construction, stadium runway construction, manufacturing road asphalt, oil refining processing, etc.
Advantage: Automatic, high capacity, competitive price.
Rubber Shredder Parameters:

Name		610 type	710 type	810 type
No	Component	Technical	Technical	Technical
1	Helical Roller	610mm *1000mm	710mm*1000mm	810mm*1200mm
2	Straight Tooth Roller	510mm*1000mm	610mm*1000mm	710mm*1200mm
3	20 Mesh Rubber Powder	1000-1200kg	1200-1500kg	1500-2000kg
4	Dimension	5400mm*2000mm*1400mm	6200mm*2260mm*1700mm	6400mm*2700mm*2400mm
5	Motor Power	Y2-325M2-6 -200-220kw	Y2-355m2-6 -250kw-280kw	Y2-400m2-8 -315kw
Auxiliary machine
No	Component	Total power	Total power	Total power
1	Main Vibrating Screen	29kw	31kw	48kw
2	Secondary Vibrating Screen
3	9000 Magnetic Separator
4	Rubber Powder Feeding Belt
5	Anti-tying Belt Machine
6	12000 Magnetic Separator
7	Rubber Powder Collector

Production Process:

Steel Wire Removal Process
1	Tire Steel Wire Drawing Machine	Remove the tire bead wire
Rubber Block Process
2	Shredder with rolling screen	Shredding the tire into ≤50mm rubber pieces
Wire separation
3	Rubber Grinder	Peel the capillary wire in the tire and obtain 1-5mm rubber particles
Rubber Granulating Process
4	Rubber Granulating Machine	Grind the rubber to 15-200 mesh as required
Dust Removal Process
5	Magnetic Separator	Remove wire from rubber particles
6	Fiber separator	Separation of fibers from tire particles
7	Dust removal equipment	Dust removal

Production process diagram

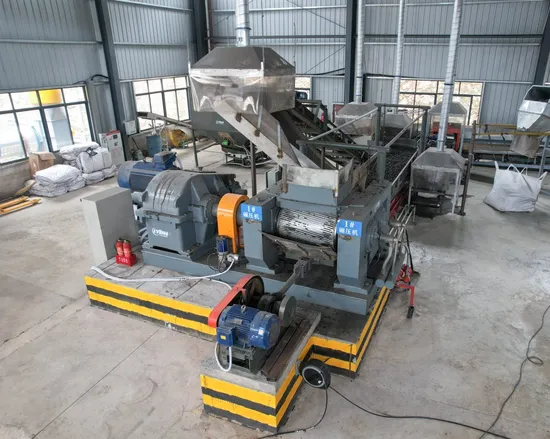

Production display
Double shaft shredder machine can crush Solar panel, scrap iron materials and other similar materials with high hardness by using special alloy cutting tools. It has characteristics of large torque, high efficiency, and low noise. This series of crushers are especially suitable for materials containing metal or stones and packaged into bundles or large sizes for all kinds of scrap. By cutting in this way it can increase the accumulation density of materials, reduce the transportation cost or benefit for further processing, such as separation. Features Reasonable design, the body is made of welded steel
Screw fastening, solid structure, durable.
Exquisite design, high productivity
Homogeneous material, lower consumption
Screen can be changed according to different demands
Cutting cools made of high hardness alloy processed by heat treatment,
The cutting tools has retractable and adjustable design, can be worn after blunt and repeated use
Equipped with larger pulley to increase the inertia of the crusher, energy saving and achieve powerful crushing
Shredder details
Product Parameters

Double-shaft shredder	Crush waste tires of various sizes, using high alloy steel imported from Europe as cutting tools, with a detachable and interchangeable double row knife structure design to improve tool utilization rate
Steel wire separator	Cut the rubber block through moving knife and fixed knife,Qualified rubber particles and steel wires are discharged through the sieve
Conveyor	The material surface of the rack has undergone rust removal treatment
Magnetic separator	The type of magnetic separator is permanent magnet self dumping type, which can effectively screen the separated steel wire.
Vibrating screen	Separate the steel wire from the large rubber block/steel wire through vibration
Electronic control system	The main control cabinet and control platform are independent of each other, and the design of touch screen and button control mode enables operation,The control interface is more user-friendly and easy to operate

Final Products:
Application area
Our factory
Certifications
Strategic Partners
Packaging & Shipping
FAQ Q: Why Choose Us?
1). We are manufacturer with own factory for many years with CE Certification 2). With professional design and sales team, we can serve you perfect solution with competitive direct factory price. 3). Our machines are popular among customers around the world ( India, Pakistan, Spain, Italy, Korea, Mexico, UK etc). Q: What Is Our Service? Pre-Sale Service According to the customers' special requirements,we provide the most suitable project design, process design and the purchase program. Guide customers to choose the best and economical plant, recover investment within short time. Sales Service You are welcome to visit our factory to test the machine. And we will customize the equipment strictly according to your special requirements and arrange the timely delivery. After-Sale Service We will provide one year warranty for our machine.According to your need,we will dispatch our engineers to your factory to guide the installation,commissioning

---
