ABC Cable NFC/IEC/ANSI/GB Standard XLPE Insulation Aluminium or Aluminium Alloy Conductorhigh Quality Overhead Cable Aerial Bunched Cable Power Cables

Product Description

Product Description

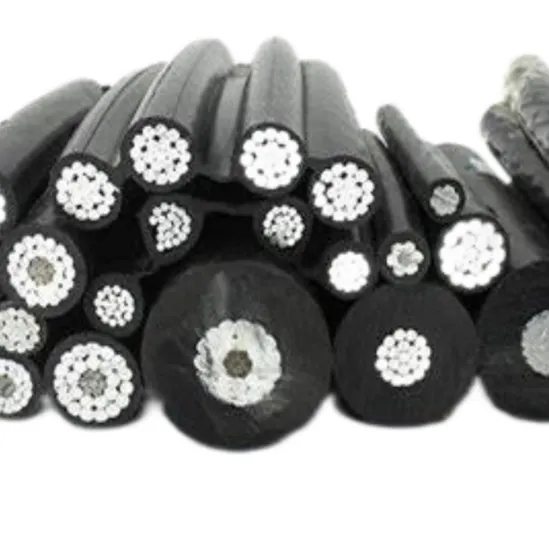

Construction
Phase conductors: Round standed or compacted 1350-H19 aluminium or Copper conductor, AAAC, ACSR
Neutral or messenger conductor:Round standed or compacted 6201 aluminium alloy or AAC, ACSR
Street lighting conductor: Round standed or compacted Aluminium conductor
Insulation : LDPE ,HDPE,XLPE ,PVC ( UV-resistant)
Applications
Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation, maintenance and operative cost. The cables are designed for aerial power lines and room-entrance wires with AC rated voltage 1kV and below.
Standards
GB/T12527,GB/T1179 ,IEC60502 ,NFC 33-209 ,BS 7870 ,ANSI/ICEA S-76-474 AS/NZS 3560.1 etc.
Type and scope

Chinese Type		Short time	Description	Primary applications
Copper conductor	Aluminum conductor
JKV	JKLV,JKLHV	Covered line wire Service drop cable Secondary UD cable	PVC insulated aerial cables	For aerial power transmission application
JKY	JKLY,JKLHY		PE insulated aerial cables
JKYJ	JKLYJ,JKLHYJ		XLPE insulated aerial cables
JKLGYJ			Steel reinforced aluminium wire with XLPE insulated aerial cable	For aerial power transmission application
				For aerial power transmission application, able to bear moderate pulling force.

Operational performance

Rated voltage	Operating temperature of different insulationºC						Temperature while installing	Accepted bending radius(mm)
	Long-time is allow			Short-circuit(within 5s)
	PVC	PE	XLPE	PVC	PE	XLPE
								D<25	D≥25
1kV	70	70	90	160	130	250	≥0ºC	≥4D	≥6D

NOTE: D in above table refers to the actual outer diameter of cables.
Production range

Chinese Type	Number of cores	Nominal cross section(mm²)	Standards
JKV,JKLV ,JKLHV ,JKY,JKLY,JKLHY, JKYJ ,JKLYJ,JKLHYJ ,JKLGYJ,JKLGY	1	16~240	GB/T12527-2008 GB/T1179-2008

Service drop cable Technical parameter
ANSI/ICEA S-76-474 Standard DUPLEX SERVICE DROP
ANSI/ICEA S-76-474 Standard Service Drop Cable(Duplex)

Code	Phase Conductors				Bare Neutral		Nominal Weight			Ampacity	Standard Package
	Size/NO. of Wires	Insulation Thickness	Nominal Diameter		Size/NO. Of Wires	Rated Strength	XLPE	AL/Alloy	Total		Coils	Reels
			Bare	O.D.
		mm	mm	mm		kg	kg/km			A	m	m
AAC
Pekingese	6-1	1.14	4.1	6.4	6-7	255	20.8	72.9	94	78	305	1000
Collie	6-7	1.14	4.6	6.9	6-7	255	23.8	72.9	97	78	305	1000
Cocker	6-7	1.52	4.6	7.7	6-7	255	32.7	72.9	106	78	305	1000
Dachshund	4-1	1.14	5.2	7.5	6-7	400	26.8	114.6	141	103	305	500
Spaniel	4-7	1.14	5.9	8.2	6-7	400	29.8	116.1	146	103	305	500
Cairn	4-7	1.52	5.9	8.9	6-7	400	40.2	116.1	156	103	305	500
Doberman	2-7	1.14	7.4	9.7	2-7	612	38.7	184.5	223	136	152	500
Airedale	1-19	1.52	8.4	11.5	1-7	-	56.5	233.6	290	158	152	500
Basset	1/0-7	1.52	9.3	12.4	1/0-7	903	64.0	294.7	359	182	152	457
Malemure	1/0-19	1.52	9.4	12.5	1/0-7	903	64.0	294.7	359	182	152	457
AAAC
Chihuahua	6-1	1.14	4.1	6.4	6-7	499	20.8	72.9	94	78	305	1000
Vizsla	6-7	1.14	4.6	6.9	6-7	499	23.8	72.9	97	78	305	1000
Harner	4-1	1.14	5.2	7.5	4-7	798	26.8	116.1	143	103	305	500
Whippet	4-7	1.14	5.9	8.2	4-7	798	29.8	116.1	146	103	305	500
Schnauzer	2-7	1.14	7.4	9.7	2-7	1270	38.7	184.5	223	136	152	500
Afghan	1/0-7	1.52	9.3	12.4	1/0-7	2023	64.0	296.1	360	182	152	457
Heeler	1-19	1.52	9.4	12.5	1/0-7	2023	64.0	296.1	360	182	152	457

Workshop Packaging & Shipping
FAQ
How can I get some samples? We provide free sample and will courier to you by DHL, FEDEX, UPS, TNT, etc. swiftly according to your requirements.
How do you control the quality?
QC department will control the quality during the full production process.
Inspector will inspect each item according to the order, inspection report will transfer to you before loading.
Any third party inspection will be accepted during the production or before loading, such as SGS, BV, etc.
After-sale dept will follow the order and pay high attention on the feedback from your side after all the products delivered. Any quality problem, we will arrange the technical personnel to solve and bear the corresponding customer losses..
What if the cable we need have some differences on specifications from yours?
Any differences, we can design and produce according to your requests.
What's the package of the goods?
Usually wooden or steel drum or coil, or according to your requirement
What's the lead time?
Usually 10-30 working days.
Welcome your inquiry and email soon......

---
